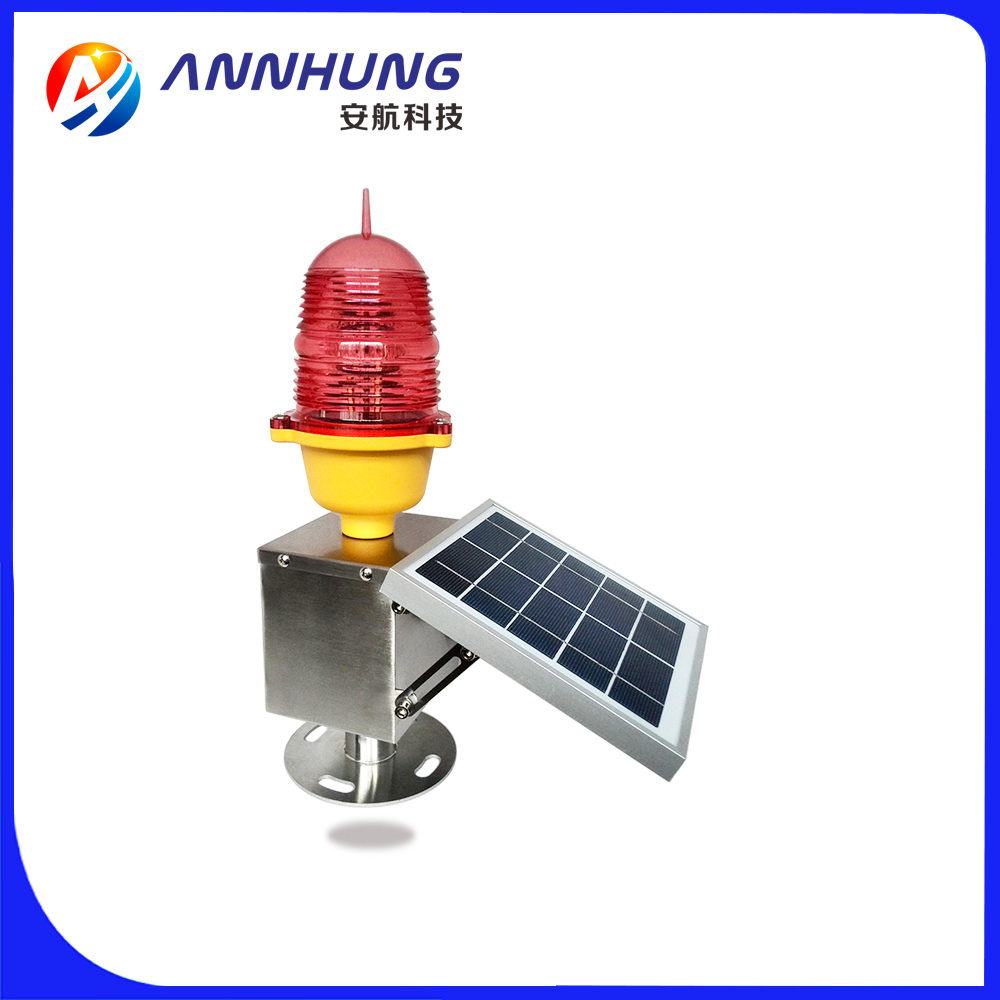

Low-intensity L810 Solar Aviation Obstruction Light
< >
  • Low-intensity L810 Solar Aviation Obstruction Light
  • Low-intensity L810 Solar Aviation Obstruction Light
Low-intensity L810 Solar Aviation Obstruction Light

Name:Low-intensity L810 Solar Aviation Obstruction Light

Model:AH-LS/A

Product Introduction:

AH-LS/A is a self-contained obstruction light which consist of solar panel, battery and lamp. There is no need for external power input. The vertical degree of the solar panel is adjustable to ensure it could get the most sunlight in different area.

It is designed for marking top of obstacle that do not exceed 45 meters in height.

Contact Us

Details Parameters Download

Compliance

  •  CAO Annex 14 Volume 1, Sixth edition, 2013, table 6.3 Low Intensity Type A / B Obstruction Light

  •  FAA L-810



Features


Electrical

  •  LED as light source, life experience >100,000hours

Physical

  •  With bird needle to prevent bird drop

  •  UV & vibrations protected polycarbonate lens for converging light

  •  Powder coated die casting aluminum base, light fastness, resist snow and rain

  •  Battery box made of corrosion resistant 304 stainless steel

  •  Self-contained without external power supply, Cable cost saving & cabling job saving, No wiring job, nice & easy installation

  •  Solar panel vertical degree is adjustable

System design

  •  Solar panel as sensor(Photo diode) for day & night working mode (dusk to dawn mode)

  •  ON/OFF button under base make local control easy

  •  Steady/Flashing(20fpm) adjustable switch available

  •  Solar panel angel is adjustable (Vertical 15-90°)

Optional

  •  GSM cellphone monitoring

  •  Infrared LED for pilot using NVG(Night Vision Goggles)

  •  Remote control ON/OFF


Application

  •  AH-LS/A solar low-intensity light is specialized used on the top of the High Chimney, Telecommunication tower, Wind Turbine where there is no cable power supply and those facilities which have high requirements on lightning protection.

  •  Used alone on the top of obstacle which height is less than 45meter


SPECIFICATIONSAH-LS/A Low-intensity L810
Solar Aviation Obstruction Light
Light Characteristics
Light SourceLED
Emitting ColorRed
Intensity(cd)≥32.5cd
Horizontal Output(degrees)360
Vertical Divergence(degrees)≥10
Flash CharacteristicsSteady/Flashing
(20fpm) adjustable
Operation ModeDusk-to-Dawn operation
LED Life Experience(hours)>100,000
Electrical Characteristics
Operating Voltage12
Circuit ProtectionIntegrated
Solar Characteristics
Solar Module TypeMono crystalline Silicon
Output(watts)12
Charging RegulationMicroprocessor controlled
Battery Characteristics
Battery typeLithium ion battery
Nominal Voltage (V)12
Battery Service LifeAverage 3 years
Battery Capacity(AH)9
SPECIFICATIONSAH-LS/A Low-intensity L810
Solar Aviation Obstruction Light
Autonomy (hours)Steady: 60, Flashing: 120
Physical Characteristics
Lamb Body MaterialUV protected Polycarbonate
Base MaterialStainless steel 304
Installation Size  98×98×θ12 & 3/4inch thread
Overall Size (mm)260×300×400
Weight(kg)3
Product Life ExpectancyAverage 5 years
Environmental Factors
Ambient Temperature(℃)-55~70
Humidity0~90%
Wind Speed80m/s
WaterproofIP65
Compliance
ICAOAnnex 14 Volume 1,'Aerodrome
Design and Operations’ Sixth
edition July 2013, table 6.3 Low-
intensity Type A/B Obstacle Light
FAAL-810
Optional
NVG - compatible infrared
 (IR) LED
GSM cellphone monitoring
