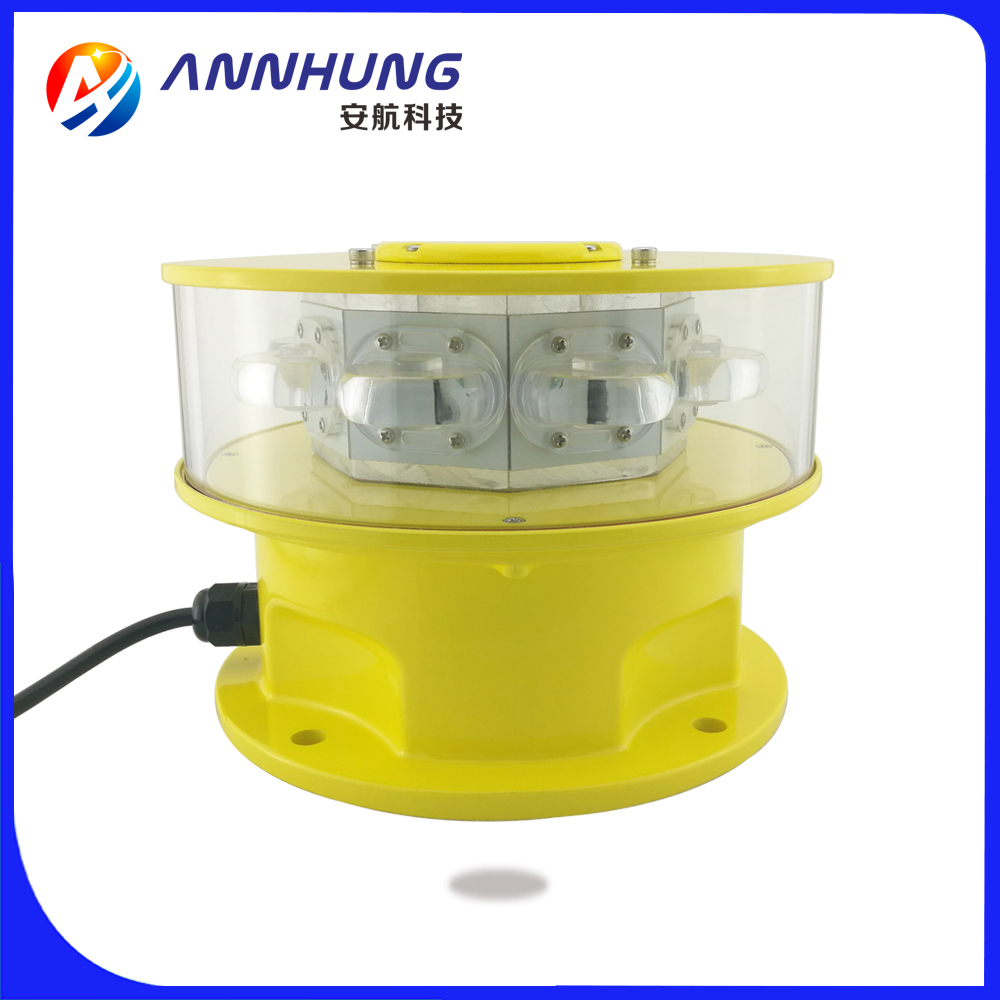

Medium-intensity Type C Aviation Obstruction Light
Details:
Compliance
ICAO Annex 14 Volume 1, Sixth edition, 2013, table 6.3 Medium Intensity Type C Obstruction Light
Features
Electrical
CREE ultra high intensity LED as light source saving power consumption and maintenance than incandescent light or halogen lamp
Power supply available in DC(12-48VDC) or AC(110-240VAC)
Physical
Unique design and UV protected polycarbonate lens for converging light
UV protection Powder coated bright yellow color base make better visibility
Base material is die casting aluminum which has strong corrosion resistance, Shock and Vibrations protection
System design
Built-in photocell for day/night operation(dusk to dawn operation)
Surge and lightning protection
Optional
Alarm contact for remote monitoring
Infrared LED for pilot using NVG
GSM cellphone monitoring
RS485 communication part for monitoring
User adjustable flashing rate(20, 30, 40, 50, 60 flashes/minute)
GPS synchronization
Application
AH-MI/C-1 medium-intensity light is used on the top of the High-rise Building, High Chimney, marking towers (Telecom, GSM, Microwave & TV), High Pole, Tower Crane, Wind Turbine, etc when the obstacle height is 45-105meter, and most time work with low intensity lights installed on the lower place.
Parameters:
| SPECIFICATIONS | AH-MI/C-1 Medium-intensity Type C Aviation Obstruction Light |
| Light Characteristics | |
| Light Source | CREE high intensity LED |
| Available Colors | Red |
| Intensity(cd) | 2000cd±25% |
| Horizontal Output(degrees) | 360 |
| Vertical Divergence(degrees) | 3 |
| Flash Characteristics | Steady burning(Fixed) |
| Operation Mode | Dusk-to-dawn Automatically as standard. |
| LED Life Experience(hours) | >100,000 |
| Electrical Characteristics | |
| Operating Voltage | DC(12-48VDC) or AC(110-240VAC) |
| Power(W) | 45 |
| Circuit Protection | Integrated |
| Physical Characteristics | |
| Body Material | Polycarbonate (High borosilicate glass as optional) |
| Base Material | Powder-coated Die-casting aluminum |
| SPECIFICATIONS | AH-MI/C-1 Medium-intensity Type C Aviation Obstruction Light |

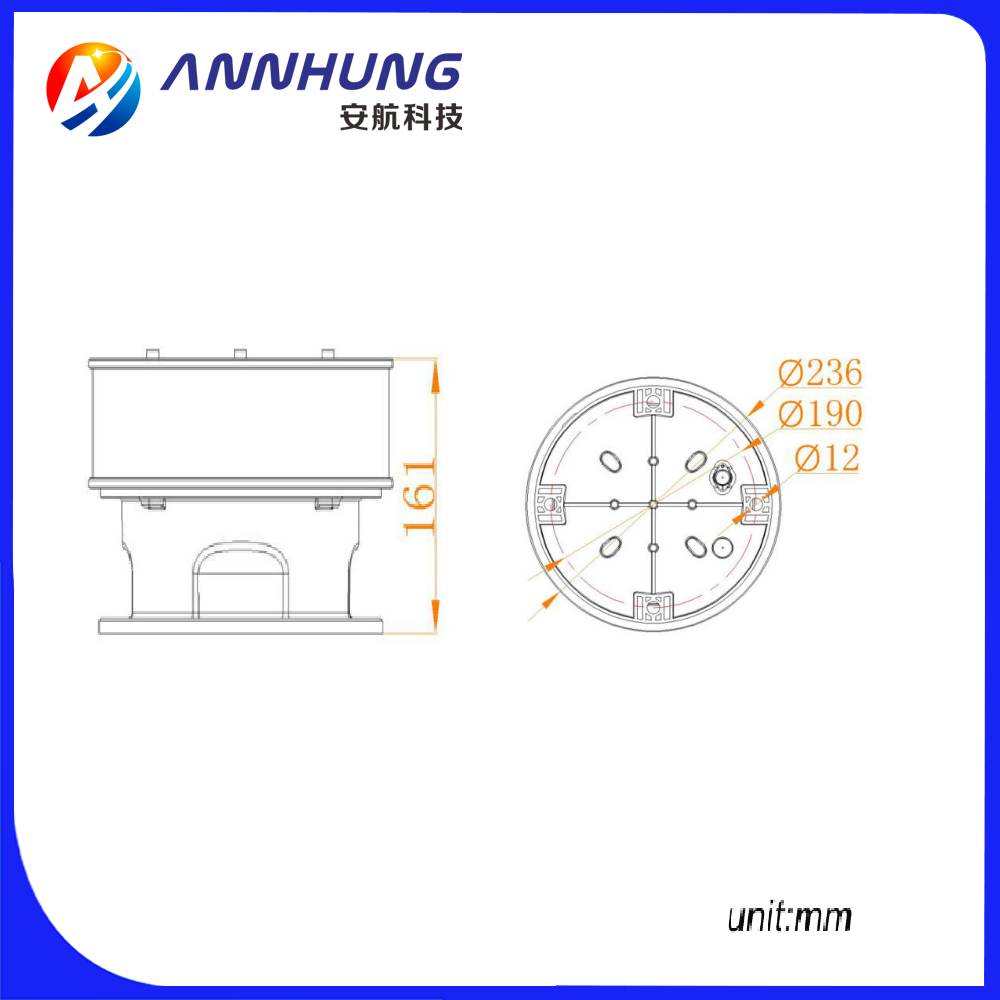

| Mounting | 190×190×θ12 |
| Dimension(mm) | 236×236×161 |
| Weight(kg) | 4 |
| Product Life Expectancy | 5 years Plus |
| Environmental Factors | |
| Humidity | 0%-100% |
| Wind Speed | 80m/s |
| Waterproof | IP67 |
| Compliance | |
| ICAO | Annex 14 Volume 1, Aerodrome Design and Operations’ Sixth edition 2013, table 6.3 Medium- intensity Type C Red Obstacle Light |
| Options Available | |
| Dry contact alarm output | Powder-coated color |
| GSM cell-phone monitoring | Infrared LED compatible for NVG (Night Vision Goggles) |
| RS485 232 communication | / |
