Medium-intensity Type B L864 Aviation Obstruction Light
Details:
Compliance
ICAO Annex 14 Volume 1, Sixth edition, 2013, table 6.3 Medium Intensity Type B Obstruction Light
FAA L-864
Features
Electrical
CREE ultra high intensity LED as light source saving power consumption and maintenance than incandescent light or halogen lamp
Power supply available in 12VDC, 48VDC, 110VAC, 240VAC
Physical
Unique design and UV protected polycarbonate lens for converging light
UV protection Powder coated bright yellow color base make better visibility
Base material is die casting aluminum which has strong corrosion resistance, Shock and Vibrations protection
System design
Built-in photocell for day/night operation(dusk to dawn operation)
Surge and lightning protection
Optional
Alarm contact for remote monitoring
GPS synchronization
Application
AH-MI/B medium-intensity light is used on the top of the High-rise Building, High Chimney, marking towers (Telecom, GSM, Microwave & TV), High Pole, Tower Crane, Wind Turbine, etc when the obstacle height is 45-105meter, and most time work with low intensity lights installed on the lower place.
Parameters:
| SPECIFICATIONS | AH-MI/B Medium-intensity Type B L864 Aviation Obstruction Light |
| Light Characteristics | |
| Light Source | High intensity LED |
| Available Colors | Red |
| Intensity(cd) | 2000cd±25% |
| Horizontal Output(degrees) | 360 |
| Vertical Divergence(degrees) | 3 |
| Flash Characteristics | 20-60 flashes per minute |
| Operation Mode | Dusk-to-dawn Automatically as standard. 24hours operation as option |
| LED Life Experience(hours) | >100,000 |
| Electrical Characteristics | |
| Operating Voltage | 12VDC, 48VDC, 110VAC, 240VAC |
| Power(W) | 13 |
| Circuit Protection | Integrated |
| Physical Characteristics | |
| Body Material | Polycarbonate |
| SPECIFICATIONS | AH-MI/B Medium-intensity Type B L864 Aviation Obstruction Light |
| Base Material | Powder-coated Die-casting aluminum |

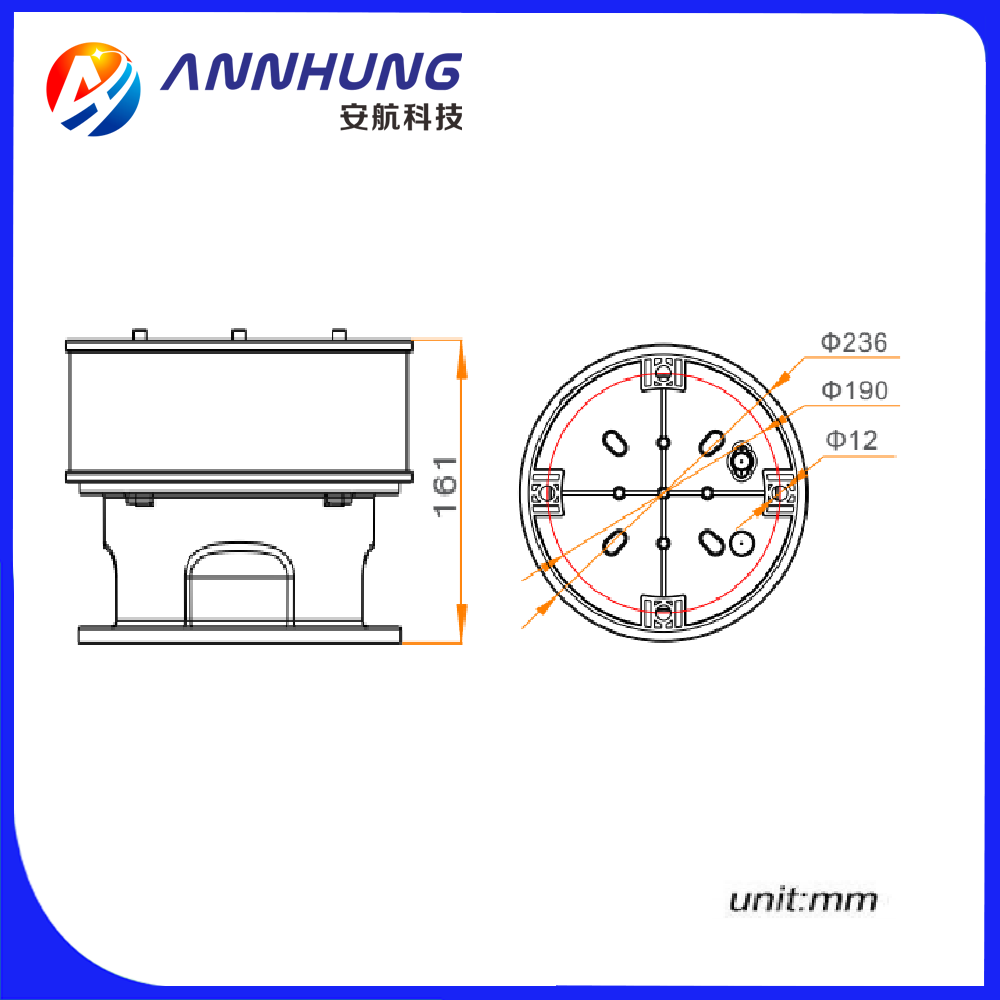

| Mounting | 190×190×θ12 |
| Dimension(mm) | 236×236×192 |
| Weight(kg) | 8 |
| Product Life Expectancy | 5 years Plus |
| Environmental Factors | |
| Humidity | 0%-100% |
| Wind Speed | 80m/s |
| Waterproof | IP66 |
| Compliance | |
| ICAO | Annex 14 Volume 1,'Aerodrome Design and Operations’ Sixth edition 2013, table 6.3 Medium-intensity Type B Red Obstacle Light |
| FAA | L-864 |
| Options Available | |
| Dry contact alarm output | GPS sync flashing |
