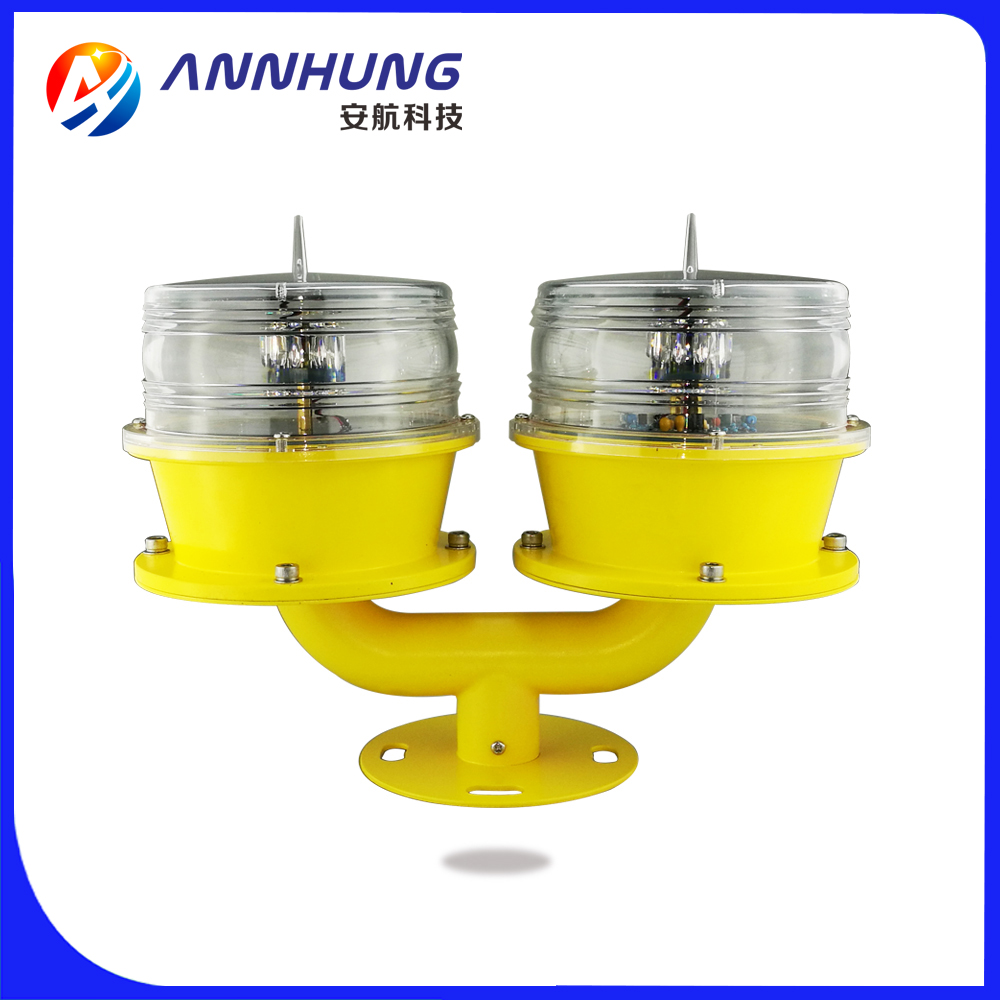

Low-intensity Solar Double Aviation Obstruction Light
Details:
Compliance
ICAO Annex 14 Volume 1,'Aerodrome Design and Operations’ Forth edition July 2004, table 6.3 Low-intensity Type B Obstacle Light
FAA L-810
Features
Electrical
LED as light source, life experience >100,000hours
Physical
With bird needle to prevent bird drop
UV & vibrations protectd polycarbonate lens for converging light
Powder coated die casting aluminum base, light fastness, resist snow and rain

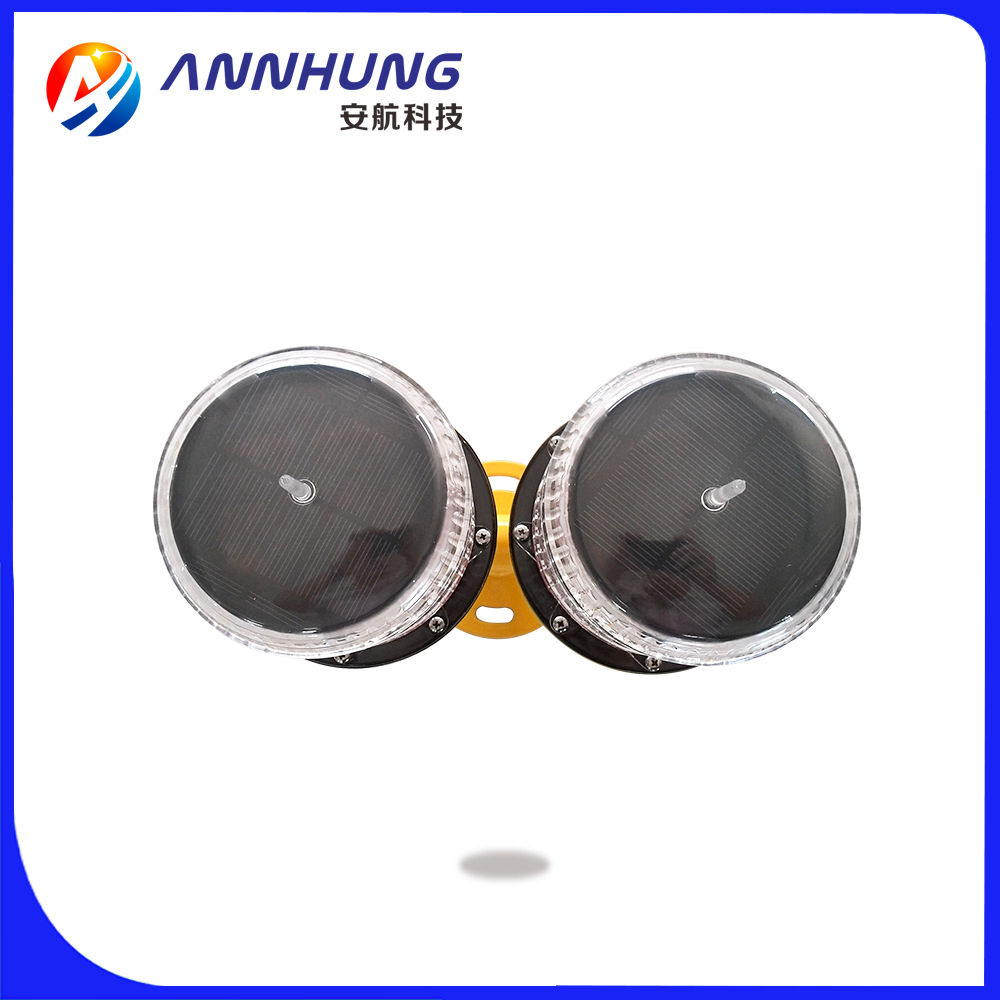

Built-in monocrystalline silicon solar panel, conversion efficiency is betther than polycrystalline silicon
System design
Built-in photocell(Photodiode) for day & night working mode (dusk to dawn mode)
ON/OFF button make local control easy
Main-standby operation: When main lamp fail, standby light turn on automatically.
Optional
Adjustable flashing setting function is designed for monitoring optional rate of flashing(20,30,40, or 60 per min)
GSM cellphone monitoring
Infrared LED for pilot using NVG(Night Vision Goggles)
Remote control ON/OFF
Working mode adjustable toggle switch: flashing or steady burning
Application
AH-LS/T solar low-intensity light is specialized used on the top of the High Chimney, Telecommunication tower, Wind Turbine where there is no cable power supply and those facilities which have high requirements on lightning protection.
Used alone on the top of obstacle which height is less than 45meter
Parameters:
| SPECIFICATIONS | AH-LS/T Low-intensity Double Solar Aviation Obstruction Light |
| Light Characteristics | |
| Light Source | LED |
| Available Colors | Red. Other colors are available if need, including IR |
| Intensity(cd) | 32.5cd |
| Horizontal Output(degrees) | 360 |
| Vertical Divergence(degrees) | ≥10 |
| Flash Characteristics | Steady & Flashing adjustable |
| Operation Mode | Dusk-to-dawn Automatically as standard. |
| 24hours operation as option | |
| Main-standby mode | |
| LED Life Experience(hours) | >100,000 |
| Electrical Characteristics | |
| Operating Voltage | 3.7Vdc |
| Power(W) | 1 |
| Circuit Protection | Integrated |
| Solar Characteristics | |
| Solar Module Type | Monocrystalline Silicon |
| Output(watts) | 0.55 |
| Charging Regulation | Microprocessor controlled |
| Battery Characteristics | |
| Battery type | Lithium ion battery |
| Battery Capacity (Ah) | 8 |
| SPECIFICATIONS | AH-LS/T Low-intensity Double Solar Aviation Obstruction Light |
| Nominal Voltage (V) | 3.7 |
| Battery Service Life | Average 3 years |
| Autonomy (hours) | Steady: 85 Flashing: 190 |
| Physical Characteristics | |
| Lamb Body Material | Aluminum Alloy |
| Base Material | Powder-coated Die-casting aluminum |
| Installation Size(mm) | 140×140×M6 |
| Overall Size(mm) | 162 by 162 by 160 |
| Weight(kg) | 1 |
| Product Life Expectancy | Average 5 years |
| Environmental Factors | |
| Humidity | 0~100% |
| Wind Speed | 80m/s |
| Waterproof | IP68 |
| Compliance | |
| ICAO | Annex 14 Volume 1,'Aerodrome Design and Operations’ Forth edition July 2004, table 6.3 |
| FAA | Low intensity Type B FAA L-810 |
| Options Available | |
| Charging port | Remote Control |
| Powder-coated color | Flashing rate |
| NVG(Night Vision Goggles) compatitble LED | Auto/Manual toggle switch |
