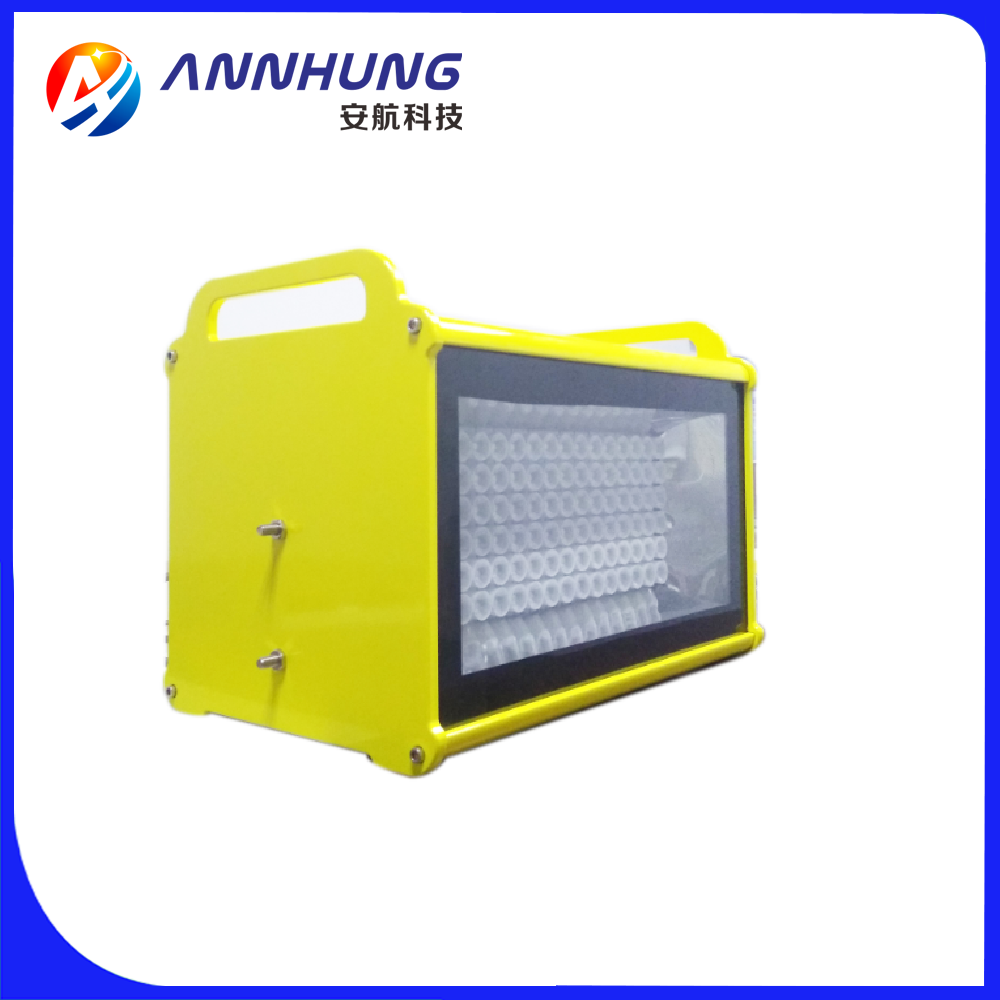

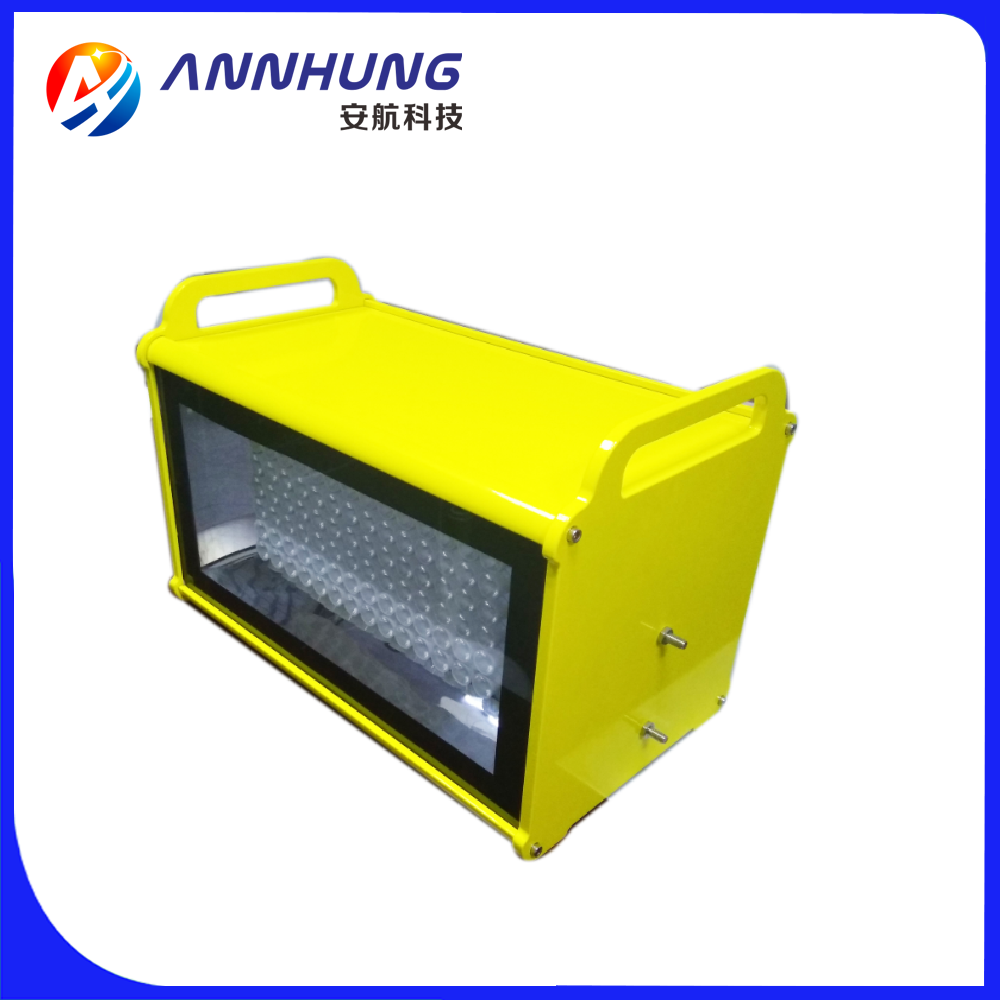

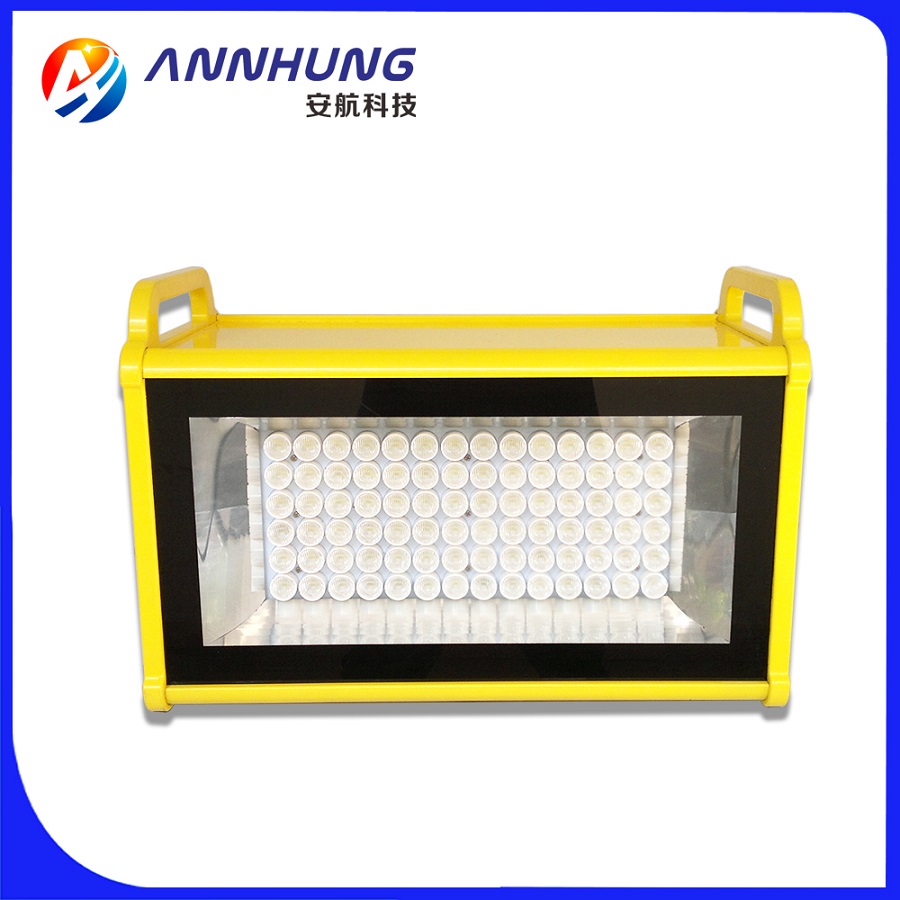

High-intensity Type A Aviation Obstruction Light
Details:
Compliance
High-intensity Type A Aviation Obstruction Light, ICAO Annex 14 Volume1,'Aerodrome Design and Operations Forth edition July 2004,table6.3t
High-intensity Type A FAA L-856
Features
Base on LED technology
Long life time: +10 year life expectancy
Low power consumption
AC or DC power supply
Low wind load factor
Alarm / remote status control
Borosilicate glass cover protection
Electrical
LED light source saving power consumption and maintenance
Power supply available in DC(12-48VDC) or AC(110-240VAC)
Physical
Bird deterrent spike
UV & vibrations protected polycarbonate lens for converging light
Powder coated die casting aluminum base
Degree of protection IP66
Operating temperature: -45°C to +55°C
Tempered glass lens, good impact resistance, thermal stability and glossiness
User-adjustable working mode between steady&flashing(20fpm
Built-in power supply and control circuit,easy mounting.
System design
Built-in photocell for day/night operation(dusk to dawn operation)
Available with Optional GSM Monitoring
Available with optional RS485 communications part for monitoring & synchronization for VDC mode
Parameters:
| SPECIFICATIONS | AH-HI/A High-intensity Type A Aviation Obstruction Light |
| Light Characteristics | |
| Light Source | ultra-high intensity LED |
| Available Colors | White |
| Intensity(cd) | -2,000cd (Night) |
| -20,000cd (Twilight) | |
| -200,000cd(Daytime) | |
| Horizontal Output(degrees) | 120 |
| Vertical Divergence(degrees) | 3-7 |
| Reflector Type | Fresnel Lens |
| Flash Characteristics | (40-60times/minute) |
| Operation Mode | Dusk-to-dawn Automatically as standard. |
| LED Life Experience(hours) | >100,000 |
| Electrical Characteristics | |
| Operating Voltage | AC220V (option voltage,eg. AC120V,AC110V,DC48V) |
| Power(W) | 100 |
| Circuit Protection | Integrated |
| Temperature Range(℃) | -40~60 |
| SPECIFICATIONS | AH-HI/A High-intensity Type A Aviation Obstruction Light |
| Physical Characteristics | |
| Body Material | High borosilicate glass |
| Base Material | die casting aluminum |

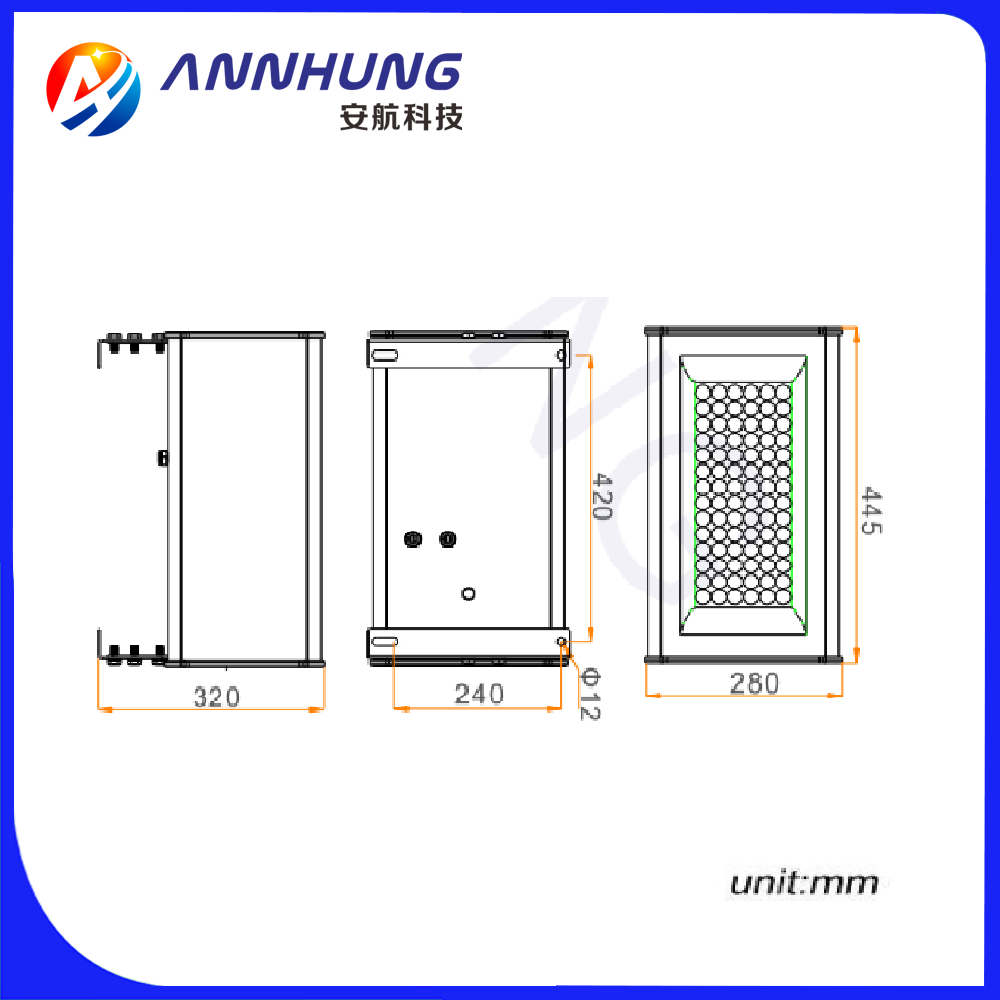

| Mounting | 420 by 240 by 12 |
| Height(mm) | 445 |
| Width(mm) | 280 |
| Depth(mm) | 320 |
| Mass(kg) | 27 |
| Product Life Expectancy | 5 years plus |
| Environmental Factors | |
| Humidity | 0~100% |
| Wind Speed | 80m/s |
| Waterproof | IP65 |
| Compliance | |
| ICAO | High-intensity Type A Aviation Obstruction Light, ICAO Annex 14 Volume 1,'Aerodrome Design and Operations’ Forth edition July 2004,table6.3 |
| FAA | High-intensity Type A FAA L-856 |
