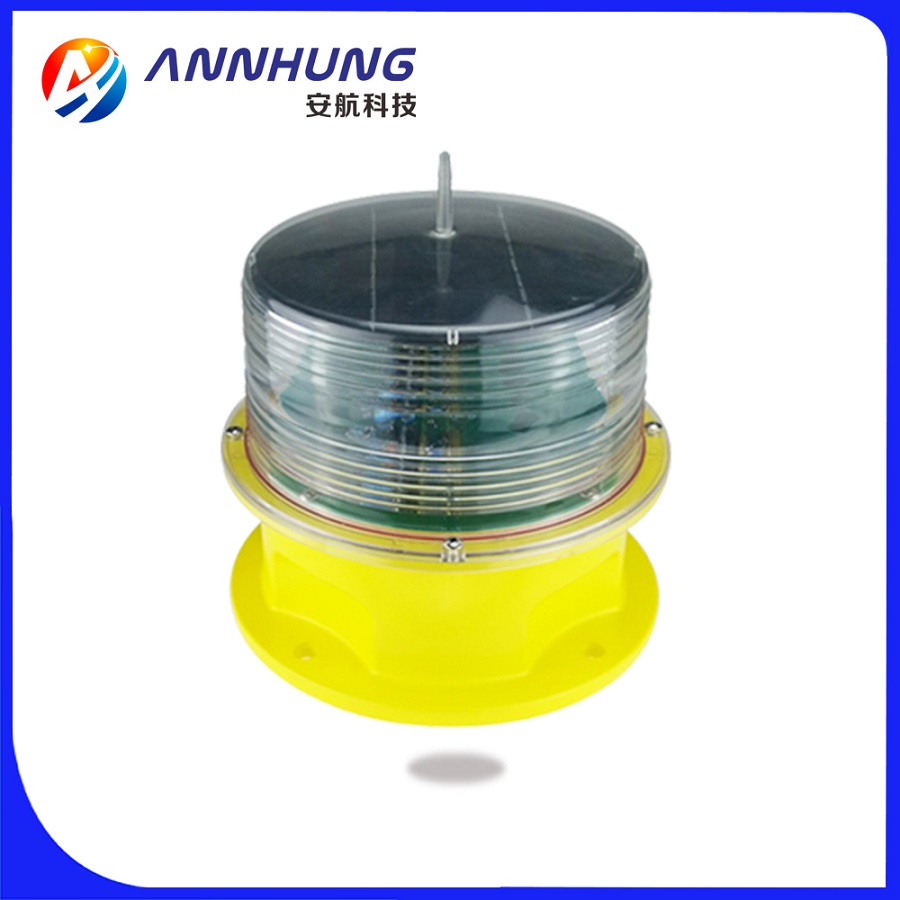

Low-intensity L810 Solar Aviation Obstruction Light
< >
  • Low-intensity L810 Solar Aviation Obstruction Light
  • Low-intensity L810 Solar Aviation Obstruction Light
Low-intensity L810 Solar Aviation Obstruction Light

Name:Low-intensity L810 Solar Aviation Obstruction Light

Model:AH-LS-B

Product Introduction:

This LED Low-intensity Solar Powered Aviation Obstruction light is adopting insert high efficient solar panels integrated design, cooperate with solar dedicated lithium ion battery as power supply.

Solar panel as sensor ensure LED only working at night and closed in the daytime automatically.

It is designed for marking top of obstacle that do not exceed 45 meters in height.


Contact Us

Details Parameters Download

Compliance

  •  CAO Annex 14 Volume 1, Sixth edition, 2013, table 6.3 Low Intensity Type A / B Obstruction Light

  •  FAA L-810



Features


Electrical

  •  LED as light source, life experience >100,000hours

Physical

  •  With bird needle to prevent bird drop

  •  UV & vibrations protected polycarbonate lens for converging light

  •  Powder coated die casting aluminum base, light fastness, resist snow and rain

  •  Built-in mono crystalline silicon solar panel, conversion efficiency is better than poly crystalline silicon

System design

  •  Solar panel as sensor(Photo diode) for day & night working mode (dusk to dawn mode)

  •  ON/OFF button make local control easy

  •  Flashing(20fpm)/steady toggle switch under base

Optional

  •  GSM cellphone monitoring

  •  Infrared LED for pilot using NVG(Night Vision Goggles)

  •  Remote control ON/OFF



Application

  •  AH-LS-B solar low-intensity light is specialized used on the top of the High Chimney, Telecommunication tower, Wind Turbine where there is no cable power supply and those facilities which have high requirements on lightning protection.

  •  Used alone on the top of obstacle which height is less than 45meter


SPECIFICATIONSAH-LS-B Low-intensity
L810 Solar Aviation
Obstruction Light
Light Characteristics
Light SourceLED
Emitting ColorRed
Intensity(cd)32.5cd
Horizontal Output
(degrees)
360
Vertical Divergence
(degrees)
≥10
Flash CharacteristicsSteady/Flashing(20fpm)
adjustable
Operation ModeDusk-to-Dawn operation
LED Life Experience
(hours)
>100,000
Electrical Characteristics
Operating Voltage3.7
Circuit ProtectionIntegrated
Solar Characteristics
Solar Module TypeMono crystalline Silicon
Output(watts)3.6
Charging RegulationMicroprocessor
controlled
Battery Characteristics
Battery typeLithium ion battery
Nominal Voltage (V)3.7
Battery Service LifeAverage 3 years
SPECIFICATIONSAH-LS-B Low-intensity L810 Solar
Aviation Obstruction Light
Autonomy (hours)Steady: 60, Flashing: 120
Physical Characteristics
Lamb Body MaterialUV protected Polycarbonate
Base MaterialPowder-coated Die-casting
aluminum
Installation Size  190×190×θ12
Overall Size (mm)220×220×233
Weight(kg)2
Product Life ExpectancyAverage 5 years
Environmental Factors
Ambient Temperature
(℃)
-55~70
Humidity0~100%
Wind Speed80m/s
WaterproofIP68
Compliance
ICAOAnnex 14 Volume 1,'Aerodrome
Design and Operations’ Sixth
edition July 2013, table 6.3 Low-
intensity Type A/B Obstacle Light
FAAL-810
Optional
NVG - compatible
infrared (IR) LED
Wireless remote control
External battery charger/
