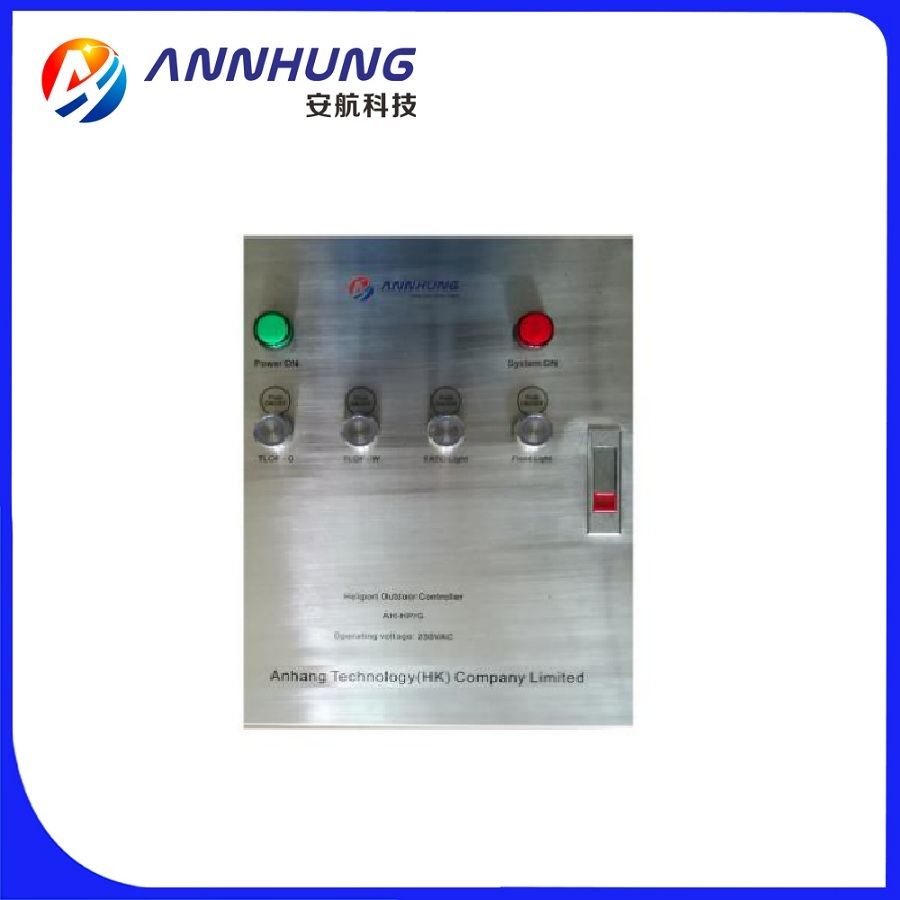

Heliport Light Controller

Name:Heliport Light Controller

Model:AH-HP-G

Product Introduction:

AH-HP-G Heliport Light Controller use 304 stainless steel material as enclosure with good waterproof, UV protection and surge protection device, so it can be used in very bad environment. It’s be used to turn ON and OFF of all Heliport lighting.

Contact Us

Details Parameters Download

Compliance

  •  ICAO and FAA regulations and CAP437 (offshore helipads)



Features

  •  Power supply available in 12VDC, 48VDC, 110VAC,240VAC, etc

  •  Enclosure material is stainless steel 304(stainless steel 316 as optional), good waterproof, UV protection

  •  Surge protection (anti lightning In 15KA/5, max 40KA)

  •  Main air switch for over voltage protection

  •  IP65 Water proof for outside use



SPECIFICATIONSAH-HP-G
Heliport Light Controller
Electrical Characteristics
Operating Voltage12VDC, 48VDC, 110VAC,
240VAC, etc
Control CapacityCustomized
Physical Characteristics
Body MaterialStainless steel 304
(SS316, Metal is optional)
Overall size(mm)480×300×172
(Standard, others optional)
Installation size(mm)440×260×θ10
(Standard, others optional)
Weight(kg)7.5 (Standard, others optional)
Product Life ExpectancyAverage 5 years
Environmental Factors
Ambient Temperature(℃)-55~70
Humidity0~95%
Wind Speed80m/s
WaterproofIP65
Options Available
Adjust light intensity
(25%, 50%, 100%),
Air-To-Ground Radio
Control(VHF)
Wireless Remote Control/
