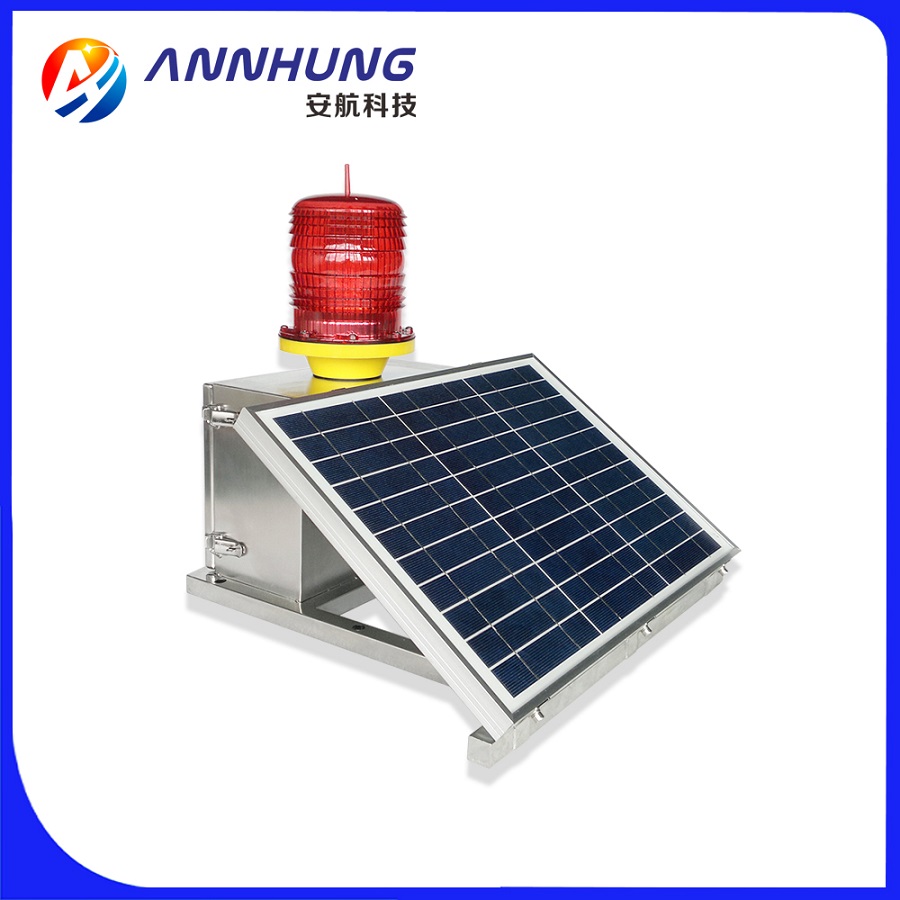

Medium-intensity Type B Solar-Powered Aviation Obstruction Light
< >
  • Medium-intensity Type B Solar-Powered Aviation Obstruction Light
  • Medium-intensity Type B Solar-Powered Aviation Obstruction Light
  • Medium-intensity Type B Solar-Powered Aviation Obstruction Light
Medium-intensity Type B Solar-Powered Aviation Obstruction Light

Name:Medium-intensity Type B Solar-Powered Aviation Obstruction Light

Model:AH-MS/S

Product Introduction:

This Medium-intensity Type B Aviation Obstruction Light flashing red color, designed for marking top of obstacle which height is between 45 to 105 meters.

GPS device is optional for AH-MS/S, it make different lights flash synchronously no matter where those lights are.

Contact Us

Details Parameters Download

Compliance

  1. ICAO Annex 14 Volume1,'Aerodrome Design and Operations’Forth edition July 2004, table6.3 Medium-intensity Type B obstacle light

  2. FAA L-864



Features

Electrical

  1. LED light source saving power consumption and maintenance

  2. Battery: VRLA (Valve Recharger Lead Acid Battery)

Physical

  1. With bird needle to prevent bird drop.

  2. UV & vibrations protected polycarbonate lens for converging light

  3. Battery box made of corrosion resistant 304 stainless steel

  4. Self-contained without external power supply, Cable cost saving & cabling job saving, No wiring job, nice & easy installation

  5. Monocrystalline silicon solar panel, conversion efficiency is betther than polycrystalline silicon

  6. Solar panel vertical degree is adjustable

System design

  1. Solar panel as photocell for day & night working mode (dusk to dawn mode)

  2. Fuse as ON/OFF switch is more reliable and easy for local control

Optional

  1. GPS Synchronization

  2. GSM cellphone monitoring

  3. Infrared LED for pilot using NVG

  4. Remote control ON/OFF

  5. RS485 communication part for monitoring



Application

  1. AH-MS/S solar medium-intensity light is specialized used on the top of the High Chimney, Telecommunication tower, Wind Turbine where there is no cable power supply and those facilities which have high requirements on lightning protection, and mostly the low intensity lights are installed lower place

SPECIFICATIONSAH-MS/S Medium-intensity
Type B Solar Aviation
Obstruction Light
Light Characteristics
Light SourceLED
Available ColorsRed (Other colors are available
if need)
Intensity(cd)2000cd±25%
Horizontal Output(degrees)360
Vertical Divergence(degrees)≥3
Flash Characteristics20-40times/minuite
Operation ModeDusk-to-dawn Automatically as
standard.
24hours operation as option
LED Life Experience(hours)>100,000
Electrical Characteristics
Operating Voltage12V DC
Power(W)24
Circuit ProtectionIntegrated
Solar Characteristics
Solar Module TypeMonocrystalline Silicon
Output(watts)0.55
Charging RegulationMicroprocessor controlled
Battery Characteristics
Battery typeVRLA( Valve Regrlater Lead
Acid Battery)
Battery Capacity (Ah)12
Nominal Voltage (V)12
SPECIFICATIONSAH-MS/S Medium-intensity
Type B Solar Aviation
Obstruction Light
Battery Service LifeAverage 3 years
Autonomy (hours)230hours
Physical Characteristics
Lamb Body MaterialUV protected polycarbonate
Base MaterialStainless steel 304
Installation Size(mm)175×175×12
Overall Size(mm):460×400×380
Weight(kg)8
Product Life ExpectancyAverage 5 years
Environmental Factors
Humidity0~100%
Wind Speed80m/s
WaterproofIP65
Compliance
ICAOAnnex 14 Volume 1,'Aerodrome
Design and
Operations’ Forth edition July
2004, table 6.3
Medium-intensity Type B
Obstacle Light
FAAL-864
Options Available
Charging portRemote Control
Flashing rate adjustable(20, 30, 40, 60)NVG(Night Vision Goggles)
compatitble LED
GPS SynchronizationGSM Cellphone Monitoring
