Medium-intensity Type B Aviation Obstruction Light
< >
  • Medium-intensity Type B Aviation Obstruction Light
  • Medium-intensity Type B Aviation Obstruction Light
Medium-intensity Type B Aviation Obstruction Light

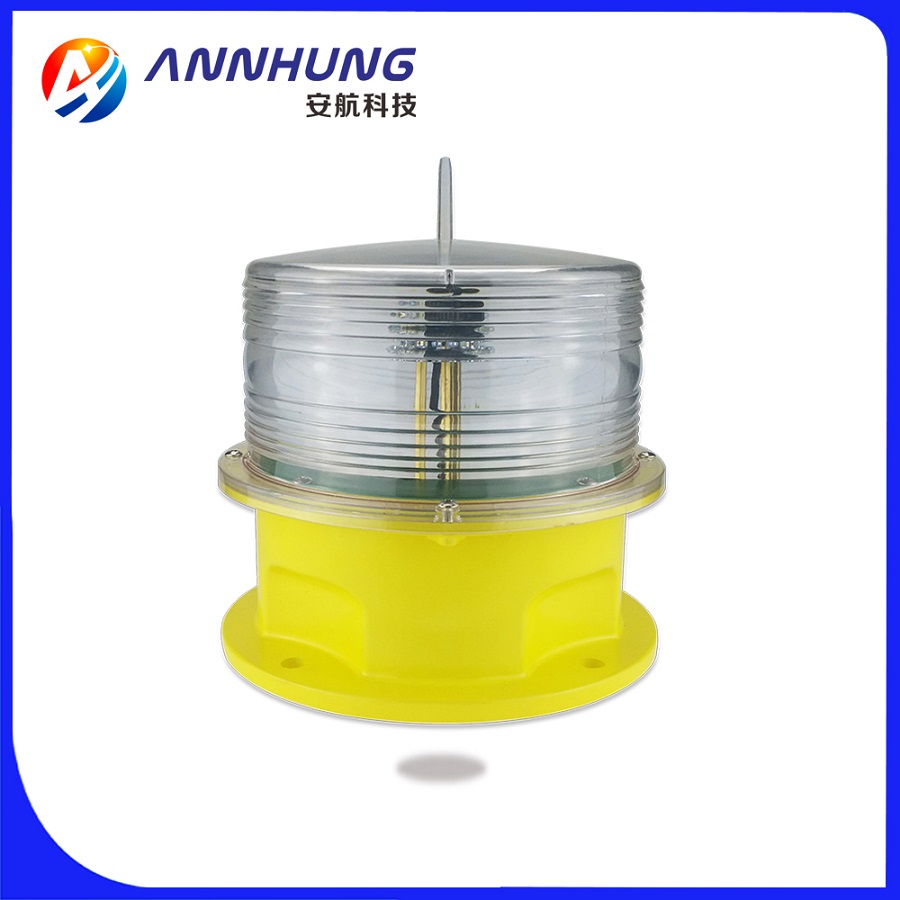

Name:Medium-intensity Type B Aviation Obstruction Light

Model:AH-MI/E

Product Introduction:

This LED Medium-intensity light can be used alone on the top of the high-rise building, high chimney, Telecom tower etc whose height is between 45m and 105m.

It flash 20-60times red color per minute at night and built-in photocell make light turn-off at daytime automatically.

Contact Us

Details Parameters Download

Compliance

  •  ICAO Annex 14 Volume 1, Sixth edition, 2013, table 6.3 Medium Intensity Type B Obstruction Light

  •  FAA L-864



Features


Electrical

  •  LED as light source saving power consumption and maintenance, 95% less power than equivalent incandescent light

  •  Power supply available in DC(12-48VDC) or AC(110-240VAC)

Physical

  •  Bird deterrent spike on top

  •  Unique designed polycarbonate lens for converging light and also provides corrosion resistance and UV protection.

  •  UV protection Powder coated bright yellow color base make better visibility

  •  Base material is die casting aluminum which has strong corrosion resistance, Shock and Vibrations protection

System design

  •  Built-in photocell for day/night operation(dusk to dawn operation)

  •  Surge and lightning protection

Optional

  •  Alarm contact for remote monitoring

  •  Infrared LED for pilot using NVG

  •  GSM cellphone monitoring

  •  RS485 communication part for monitoring

  •  GPS synchronization

  •  Adjustable flashing rate(20-30-40-50-60)



Application

  •  AH-MI/E Medium-intensity red light could be used on the top of the High-rise Building, High Chimney, marking towers (Telecom, GSM, Microwave & TV), High Pole, Tower Crane, Wind Turbine, etc when the height is 45-105meter, and low intensity lights installed on lower place.

  •  Medium-intensity type B light also use with Medium-intensity type A and high-intensity light when obstacle is more than 105meter.


SPECIFICATIONSAH-MI/E Medium-intensity Type
B Aviation Obstruction Light
Light Characteristics
Light SourceLED
Available ColorsRed (Other color is optional)
Intensity(cd)2,000cd±25%
Horizontal Output(degrees)360
Vertical Divergence(degrees)≥10
Flash Characteristics20-60times/minute
Operation ModeDusk-to-dawn Automatically as standard.
 24 hours operation as option
LED Life Experience(hours)>100,000
Electrical Characteristics
Operating VoltageDC(12-48VDC) or AC(110-240VAC)
Power(W)12
Circuit ProtectionIntegrated
Physical Characteristics
Body MaterialUV protective Polycarbonate
Base MaterialPowder-coated Die-casting aluminum
SPECIFICATIONSAH-MI/E Medium-intensity Type
B Aviation Obstruction Light
Installation size(mm) 190×190×12
Overall size(mm)220×220×233
Weight(kg)2
Product Life ExpectancyAverage 5 years
Environmental Factors
Humidity0~100%
Wind Speed80m/s
WaterproofIP67
Compliance
ICAOAnnex 14 Volume 1,'Aerodrome
Design and Operations’ Sixth
edition July 2013, table 6.3
FAAL-864
Options Available
GPS synchronizationPowder-coated color
RS485 communication part
 for monitoring
NVG(Night Vision Goggles)
compatitble LED
Adjustable flashing rate
(20-30-40-50-60)
GSM Cell-phone Monitoring
