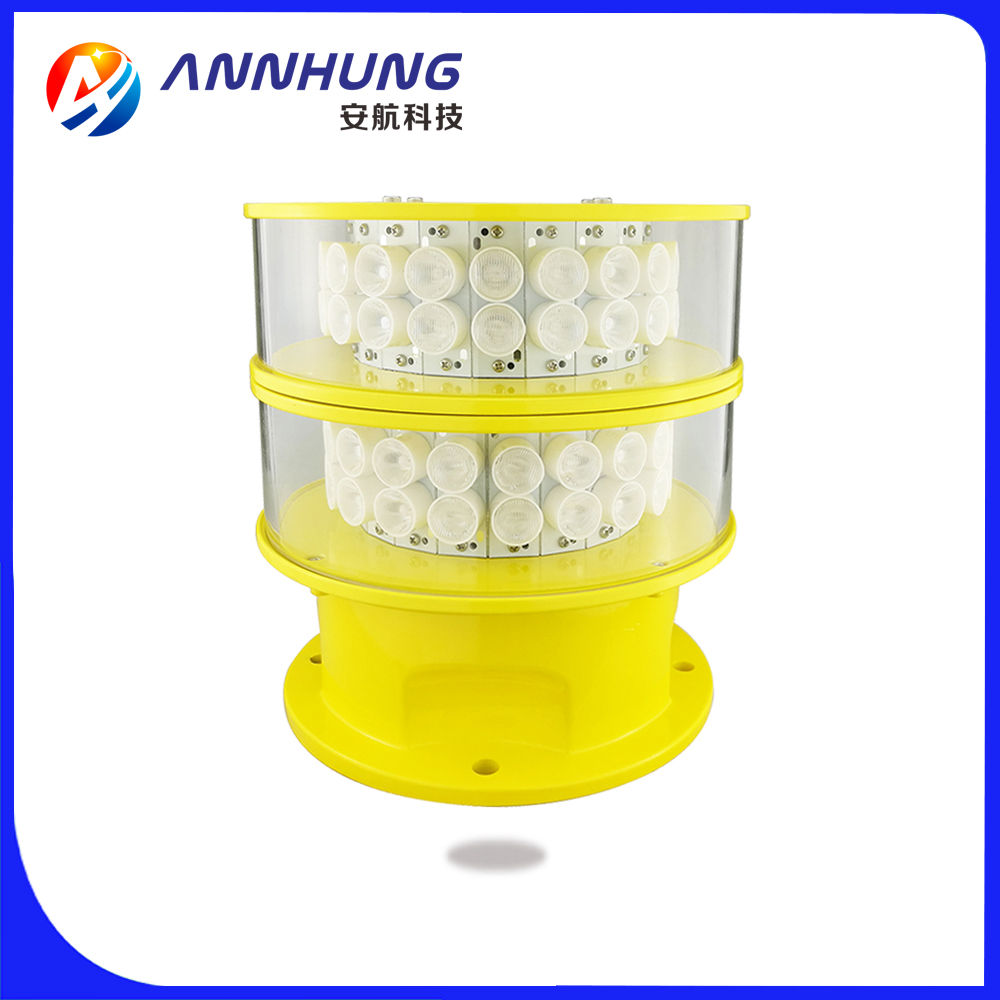

Medium-intensity Double Aviation Obstruction Light
< >
  • Medium-intensity Double Aviation Obstruction Light
  • Medium-intensity Double Aviation Obstruction Light
Medium-intensity Double Aviation Obstruction Light

Name:Medium-intensity Double Aviation Obstruction Light

Model:AH-MI/I

Product Introduction:

This Medium-intensity Type B Aviation Obstruction Light flashing red color, designed for marking

 top of obstacle which height is between 45 to 105 meters.

Main-standby mode ensure the obstacle is always marked even one light fail. Because when

main top main lamp fail, down standby lamp will turn on automatically.


Contact Us

Details Parameters Download

Compliance

  •  ICAO Annex 14 Volume 1, Sixth edition, 2013, table 6.3 Medium Intensity Type B Obstruction Light

  •  FAA L-864



Features


Electrical

  •  High intensity LED as light source saving power consumption and maintenance than incandescent light or halogen lamp

  •  Power supply available in  12VDC, 48VDC, 110VAC, 240VAC

Physical

  •  Unique design and UV protected polycarbonate lens for converging light

  •  UV protection Powder coated bright yellow color base make better visibility

  •  Base material is die casting aluminum which has strong corrosion resistance, Shock and Vibrations protection

System design

  •  Built-in photocell for day/night operation(dusk to dawn operation)

  •  Surge and lightning protection

  •  Main-standby mode

Optional

  •  Alarm contact for remote monitoring

  •  GPS synchronization



Application

  •  AH-MI/I medium-intensity light is used on the top of the High-rise Building, High Chimney, marking towers (Telecom, GSM, Microwave & TV), High Pole, Tower Crane, Wind Turbine, etc when the obstacle height is 45-105meter, and most time work with low intensity lights installed on the lower place.


SPECIFICATIONSAH-MI/I Medium-intensity
Double Aviation Obstruction Light
Light Characteristics
Light SourceHigh intensity LED
Available ColorsRed
Intensity(cd)2000cd±25%
Horizontal Output(degrees)360
Vertical Divergence(degrees)4
Flash Characteristics20-60 flashes per minute
Operation ModeDusk-to-dawn
Automatically as standard.
24hours operation as option
LED Life Experience(hours)>100,000
Electrical Characteristics
Operating Voltage12VDC, 48VDC,
110VAC, 240VAC
Power(W)14
Circuit ProtectionIntegrated
Physical Characteristics
Body MaterialPolycarbonate
SPECIFICATIONSAH-MI/I Medium-intensity
Double Aviation Obstruction Light
Base MaterialPowder-coated
Die-casting aluminum
Mounting 190×190×θ12
Dimension(mm)236×236×245
Weight(kg)7.5
Product Life Expectancy5 years Plus
Environmental Factors
Humidity0%-100%
Wind Speed80m/s
WaterproofIP66
Compliance
ICAOAnnex 14 Volume 1,'Aerodrome
Design and Operations’ Sixth edition
2013, table 6.3 Medium-intensity
Type B Red Obstacle Light
FAAL-864
Options Available
GPS sync flashingDry contact alarm output
