Low-intensity Solar-Powered   Aviation Obstruction Light
< >
  • Low-intensity Solar-Powered   Aviation Obstruction Light
  • Low-intensity Solar-Powered   Aviation Obstruction Light

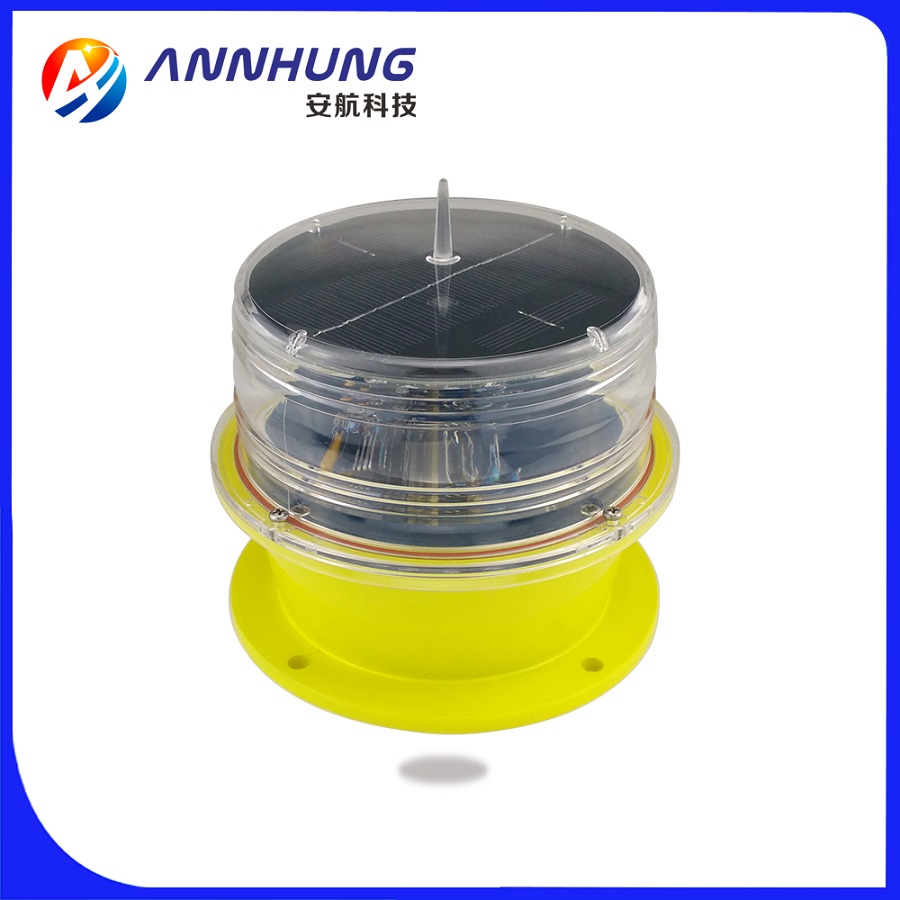

Low-intensity Solar-Powered Aviation Obstruction Light

Name:Low-intensity Solar-Powered Aviation Obstruction Light

Model:AH-LS/L

Product Introduction:

This LED Low-intensity Solar-Powered Aviation Obstruction light is adopting insert high efficient solar panels integrated design, cooperate with solar dedicated lithium ion battery as power supply.

It is designed for marking top of obstacle that do not exceed 45 meters in height.

Contact Us

Details Parameters Download

Compliance

  1. ICAO Annex 14 Volume 1,'Aerodrome Design and Operations’ Forth edition July 2004, table 6.3 Low-intensity Type A Obstacle Light

  2. FAA L-810



Features

Electrical

  1. LED as light source, life experience >100,000hours

Physical

  1. With bird needle to prevent bird drop

  2. UV & vibrations protectd polycarbonate lens for converging light

  3. Powder coated die casting aluminum base, light fastness, resist snow and rain

  4. Built-in monocrystalline silicon solar panel, conversion efficiency is betther than polycrystalline silicon

System design

  1. Built-in photocell(Photodiode) for day & night working mode (dusk to dawn mode)

  2. ON/OFF button make local control easy

Optional

  1. Adjustable flashing setting function is designed for monitoring optional rate of flashing(20,30,40, or 60 per min)

  2. RS485 communication part for monitoring

  3. GSM cellphone monitoring

  4. Infrared LED for pilot using NVG(Night Vision Goggles)

  5. Remote control ON/OFF

  6. Working mode adjustable toggle switch: flashing or steady burning



Application

  1. AH-LS/L solar low-intensity light is specialized used on the top of the High Chimney, Telecommunication tower, Wind Turbine where there is no cable power supply and those facilities which have high requirements on lightning protection.

  2. Used alone on the top of obstacle which height is less than 45meter


SPECIFICATIONSAH-LS/L Low-intensity Solar
Powered Aviation
Obstruction Light
Light Characteristics
Light SourceLED
Available ColorsRed. Other colors are available
if need,including IR
Intensity(cd)10cd(Steady),
32.5cd(Flashing)
Horizontal Output(degrees)360
Vertical Divergence(degrees)≥10
Flash CharacteristicsSteady & Flashing adjustable
Operation ModeDusk-to-dawn Automatically as
standard.
24hours operation as option
LED Life Experience(hours)>100,000
Electrical Characteristics
Operating Voltage3.7Vdc
Power(W)1
Circuit ProtectionIntegrated
Solar Characteristics
Solar Module TypeMonocrystalline Silicon
Output(watts)0.55
Charging RegulationMicroprocessor controlled
Battery Characteristics
Battery typeLithium ion battery
Battery Capacity (Ah)6
Nominal Voltage (V)3.7
SPECIFICATIONSAH-LS/L Low-intensity
Solar Powered Aviation
Obstruction Light
Battery Service LifeAverage 3 years
Autonomy (hours)Steady: 60
Flashing: 150
Physical Characteristics
Lamb Body MaterialAluminum Alloy
Base MaterialPowder-coated Die-casting
aluminum
Installation Size(mm)140×140×M6
Overall Size(mm)162 by 162 by 160
Weight(kg)1
Product Life ExpectancyAverage 5 years
Environmental Factors
Humidity0~100%
Wind Speed80m/s
WaterproofIP68
Compliance
ICAOAnnex 14 Volume 1,'Aerodrome
Design and Operations’ Forth
edition July  2004, table 6.3
FAALow intensity Type B FAA L-
810
Options Available
Charging portRemote Control
Powder-coated colorFlashing rate
Auto/Manual toggle switchNVG(Night Vision Goggles)
compatitble LED
