LED Solar Powered Marine Lanterns
< >
  • LED Solar Powered Marine Lanterns
  • LED Solar Powered Marine Lanterns
  • LED Solar Powered Marine Lanterns

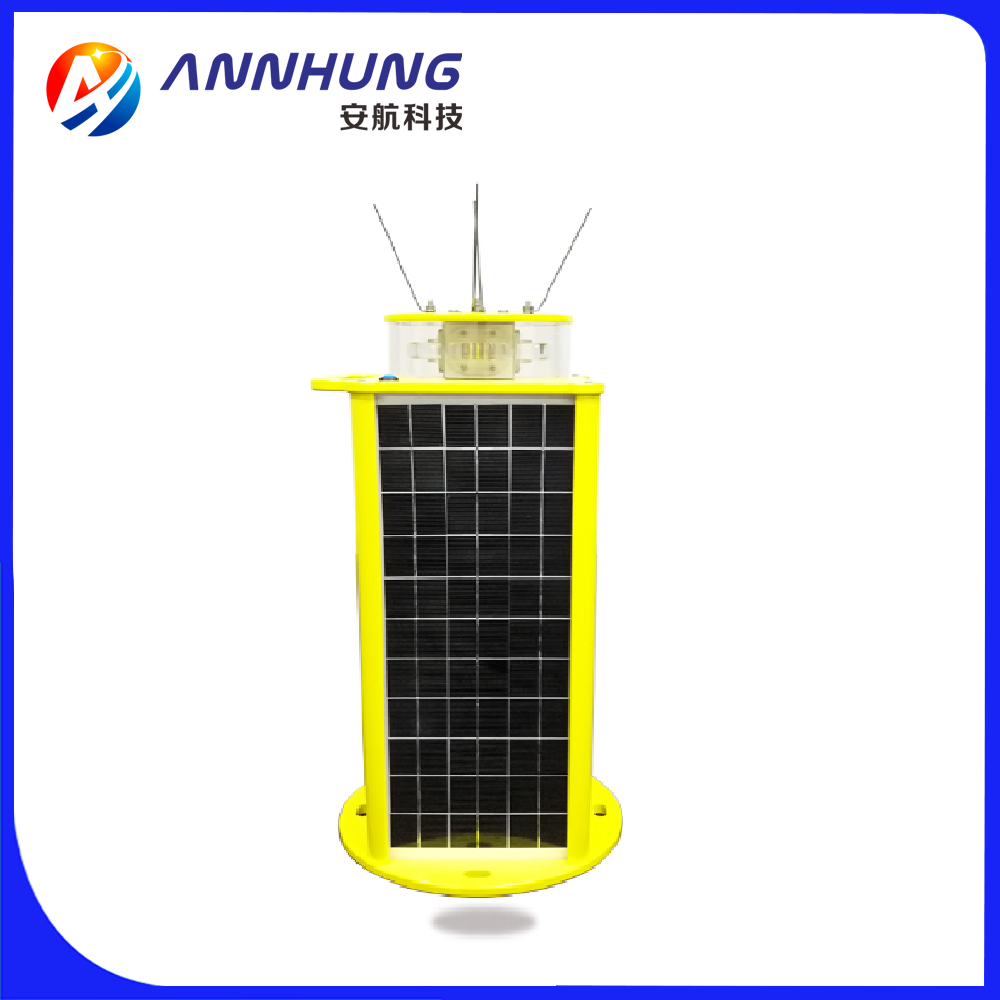

LED Solar Powered Marine Lanterns

Name:LED Solar Powered Marine Lanterns

Model:AH-LS/C-12

Product Introduction:

This LED Marine Lanterns is completely self-contained lantern. Four (4) solar panels are integrated into the assembly and mounted to collect sunlight at all angles.

CREE Ultra high intensity LED is used as light source which make performance better.

There is two rotatory switch on PCB, user could change the light flashing characteristics(IALA 256 flashes) easily.

GSM Monitoring as optional function, when fault happens, it will send out text message automatically.

Contact Us

Details Parameters Download

Compliance

  •  IALA E-200-1



Features


Electrical

  •  Based on LED technology, and its color complies to IALA Recommendations E-200-1.

  •  LED technology reduces maintenance time & costs

Physical

  •  PC housing, UV resistance, shockproof and corrosion proof.

  •  Bird deterrent spike

  •  Powder coated die casting aluminum base

  •  4-side mono crystalline silicon solar panel, conversion efficiency is better than poly crystalline silicon

  •  ON/OFF button interface

System design

  •  Solar panel as photocell for day/night operation(dusk to dawn)

  •  Equipped with rotary switches for adjust 256 kinds of flashing rate comply with IALA

Optional

  •  User-adjustable operation mode to toggle between dusk-till-dawn & 24hr operation

  •  External charger

  •  Bluetooth remote control

  •  GSM Monitoring

  •  RS232 485 port

  •  Bird-spike



Application

  •  AH-LS/C-12 Solar Marine Lantern is used on buoy, light house and any other off shore site for marine/river safe navigation.


SPECIFICATIONSAH-LS/C-12 LED Solar
Powered Marine Lanterns
Light Characteristics
Light SourceLED
Available ColorsRed, Green, Yellow,
White, Blue
Visible Range(NM)9-12 (AT@0.74)
Horizontal Output(degrees)360
Vertical Divergence(degrees)7
Flash CharacteristicsAdjustable 256 IALA
light characteristics
Operation ModeDusk-to-dawn Automatically
(Built-in photocell)
LED Life Experience(hours)>100,000
Electrical Characteristics
Operating Voltage12Vdc
Circuit ProtectionIntegrated
Solar Characteristics
Solar Module TypeMono crystalline Silicon
Output(watts)48
Charging RegulationMicroprocessor controlled
Battery Characteristics
Battery typeValve-Regulated Lead
 Acid Battery
Battery Capacity (Ah)Depends on different
 visible range
Nominal Voltage (V)12
SPECIFICATIONSAH-LS/C-12 LED Solar
Powered Marine Lanterns
Battery Service LifeAverage 3 years
Autonomy (hours)Steady: 70 Flashing: 180
Physical Characteristics
Body MaterialUV protected Polycarbonate
Base MaterialPowder-coated
Die-casting aluminum
Mounting(mm)260×260×Φ12
Dimension(mm)260×260×520
Weight(kg)12
Product Life ExpectancyAverage 5 years
Environmental Factors
Humidity0~100%
Wind Speed80m/s
WaterproofIP68
Compliance
IALASignal colors compliant
 to IALA E-200-1
Options Available
GSM MonitoringCharging port
RS232 485 portBluetooth Remote Control
Bird-spike/
