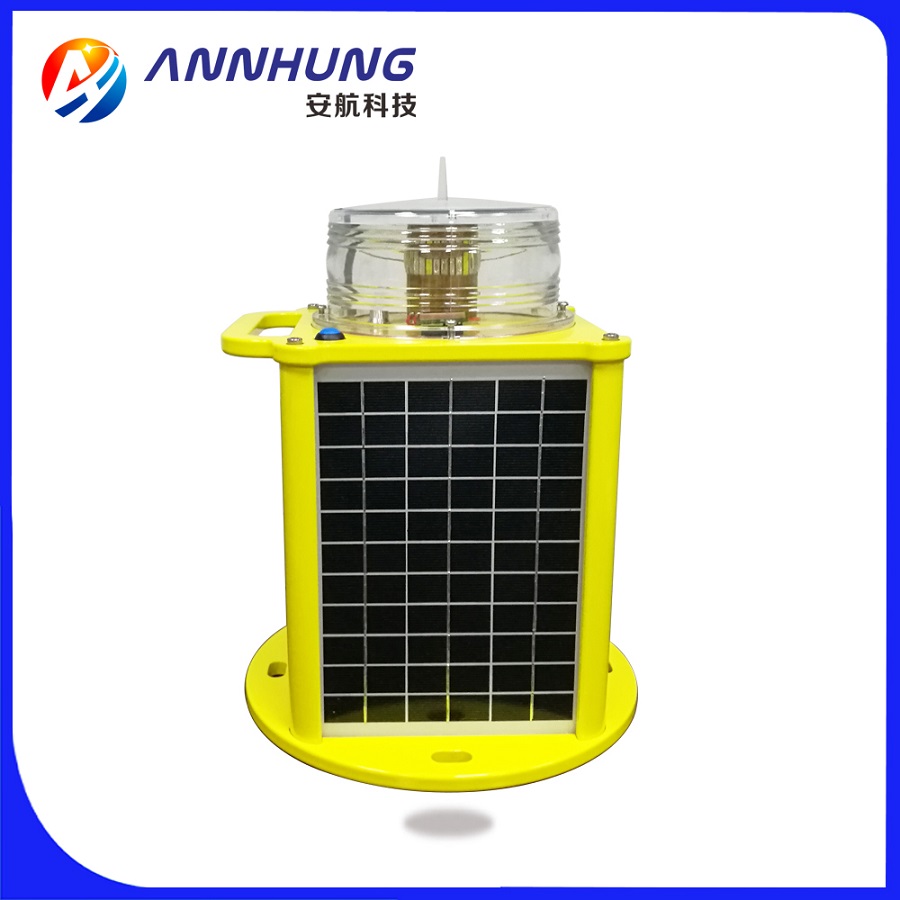

LED Solar Powered Marine Lanterns
< >
  • LED Solar Powered Marine Lanterns
  • LED Solar Powered Marine Lanterns
  • LED Solar Powered Marine Lanterns
LED Solar Powered Marine Lanterns

Name:LED Solar Powered Marine Lanterns

Model:AH-LS/C-6-1

Product Introduction:

This LED Marine Lanterns is completely self-contained lantern. Four (4) solar panels are integrated into the assembly and mounted to collect sunlight at all angles.

CREE Ultra high intensity LED is used as light source which make performance better.

Bluetooth remote control 256 IALA flashes, there is no need use of extra remoter, any cellphone with bluetooth could turn on/off, set the flash rate of the lantern.

https://www.youtube.com/watch?v=w8FfDBJLWsI

Contact Us

Details Parameters Download

Compliance

  1. IALA E-200-1



Features

Electrical

  1. Based on LED technology, and its color complies to IALA Recommendations E-200-1.

  2. LED technology reduces maintenance time & costs

Physical

  1. PC housing,UV resistance, shockproof and corrosion proof.

  2. Bird deterrent spike

  3. Powder coated die casting aluminum base

  4. 4-side monocrystalline silicon solar panel, conversion efficiency is betther than polycrystalline silicon

  5. ON/OFF button interface

System design

  1. Solar panel as photocell for day/night operation(dusk to dawn)

  2. Equipted with rotary switches for adjust 256 kinds of flashing rate comply with IALA

Optional

  1. User-adjustable operation mode to toggle between dusk-till-dawn & 24hr operation

  2. External charger

  3. Wireless remote control

  4. Bluetooth remote control

  5. Infrared remote control

  6. GSM Monitoring



Application

  1. AH-LS/C-6-1 Solar Marine Lantern is used on buoy, light house and any other off shore site for marine/river safe navigation.

SPECIFICATIONSAH-LS/C-6-1
Solar Powered
Marine Lanterns
Light Characteristics
Light SourceLED
Available ColorsRed, green, yellow, white, blue
Intensity(cd)15cd (3nm),35cd(4nm),
75cd(5NM),150cd(6nm) (6NM)
Horizontal Output(degrees)360
Vertical Divergence(degrees)>9
Flash CharacteristicsAdjustable 256 IALA
light characteristics
Operation ModeDusk-to-dawn Automatically
as standard.
24hours operation as option
LED Life Experience(hours)>100,000
Electrical Characteristics
Operating Voltage12Vdc
Power(W)???/24W
Circuit ProtectionIntegrated
Solar Characteristics
Solar Module TypeMono-crystalline Silicon
Output(watts)24W (6W×4)
Charging RegulationMicroprocessor controlled
Battery Characteristics
Battery typeVRLA (Valve-regulated
Lead Acid Battery)
Battery Capacity (Ah)12
SPECIFICATIONSAH-LS/C-6-1
Solar Powered
Marine Lanterns
Nominal Voltage (V)12
Battery Service LifeAverage 3 years
Autonomy (hours)Steady: 100
Flashing: 240
Physical Characteristics
Body MaterialPolycarbonate
Base MaterialPowder-coated
Die-casting aluminum
Mounting 220×220×M10
Dimension(mm)260×260×340
Weight(kg)5
Product Life ExpectancyAverage 5 years
Environmental Factors
Humidity0~100%
Wind Speed80m/s
WaterproofIP68
Compliance
IALASignal colors comply
to IALA E-200-1
Options Available
Charging portRemote Control
Bluetooth Remote
Control 256 flashes
Auto/Manual toggle switch
GPS synchronization/
