LED Marine Navigation Lanterns
< >
  • LED Marine Navigation Lanterns
  • LED Marine Navigation Lanterns

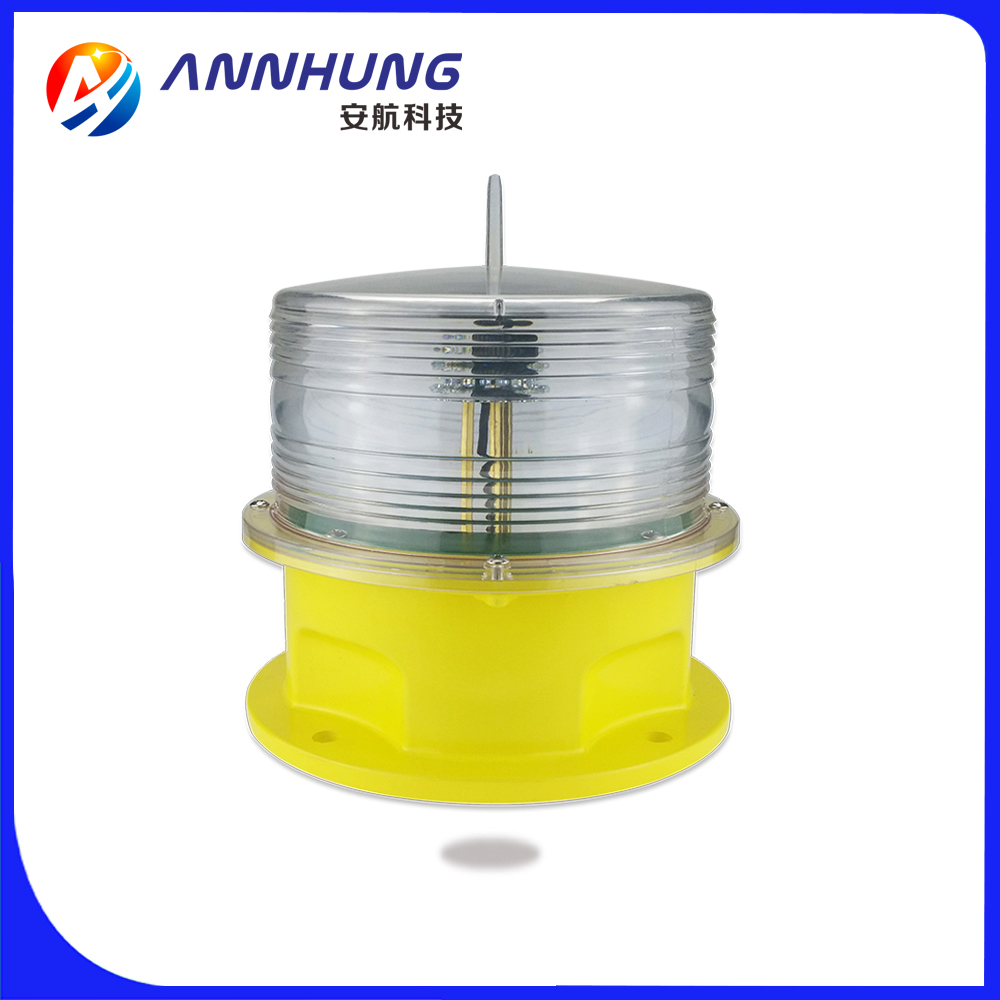

LED Marine Navigation Lanterns

Name:LED Marine Navigation Lanterns

Model:AH-LS/P-2

Product Introduction:


This LED Marine Navigation Lanterns is completely sealed lantern.

There is two rotatory switch on PCB, user could change the light flashing characteristics(IALA 256 flashes) easily.

GPS sync flashing is optional, it ensure all different flash light could flash at the same time.


Contact Us

Details Parameters Download

Compliance

  •  IALA E-200-1



Features


Electrical

  •  Based on LED technology, and its color complies to IALA Recommendations E-200-1.

  •  LED technology reduces maintenance time & costs

  •  Working voltage: 110-240vac, 12vdc, 48vdc

Physical

  •  Integrated design, enabling a rugged and completely waterproof seal capable of prolonged and deep immersion (IP68).

  •  PC housing,UV resistance, shockproof and corrosion proof.

  •  Bird deterrent spike

  •  Powder coated die casting aluminum base

System design

  •  Built-in photocell for day/night operation(dusk to dawn operation)

Optional

  •  Rotary switches for adjust 256 flash characteristics comply with IALA

  •  User-adjustable operation mode to toggle between dusk-till-dawn & 24hr operation

  •  External charger

  •  Wireless remote control

  •  Bluetooth remote control

  •  Infrared remote control

  •  GSM Monitoring

  •  RS232 485 port

  •  GPS sync flashing

  •  Solar panel & battery



Application

  •  AH-LS/P-2 LED Marine Navigation Lantern is used on buoy, light house and any other off shore site for marine/river safe navigation.


SPECIFICATIONSAH-LS/P-2 LED Marine
Navigation Lanterns
Light Characteristics
Light SourceLED
Available ColorsRed, Green, Yellow,
White, Blue
Visible Range(NM)6-10 (AT@0.74)
Horizontal Output
(degrees)
360
Vertical Divergence
(degrees)
10
Flash CharacteristicsAdjustable Steady/Flash
mode(others optional)
Operation ModeDusk-to-dawn Automatically
(Built-in photocell)
LED Life Experience
(hours)
>100,000
Electrical Characteristics
Operating Voltage110-240VAC, 12VDC,
48VDC or others
Circuit ProtectionIntegrated
Physical Characteristics
Body MaterialUV protected Polycarbonate
Base MaterialPowder-coated
Die-casting aluminum
SPECIFICATIONSAH-LS/P-2 LED Marine
Navigation Lanterns
Mounting(mm)190×190×Φ12
Dimension(mm)220×220×233
Weight(kg)2.5
Product Life
Expectancy
Average 5 years
Environmental Factors
Humidity0~100%
Wind Speed80m/s
WaterproofIP68
Compliance
IALASignal colors compliance
to IALA E-200-1
Options Available
RS232 485 portWireless Remote Control
Charging portGSM Monitoring
IALA 256 Light
characters adjustable
GPS sync flashing
Solar panel & battery/
