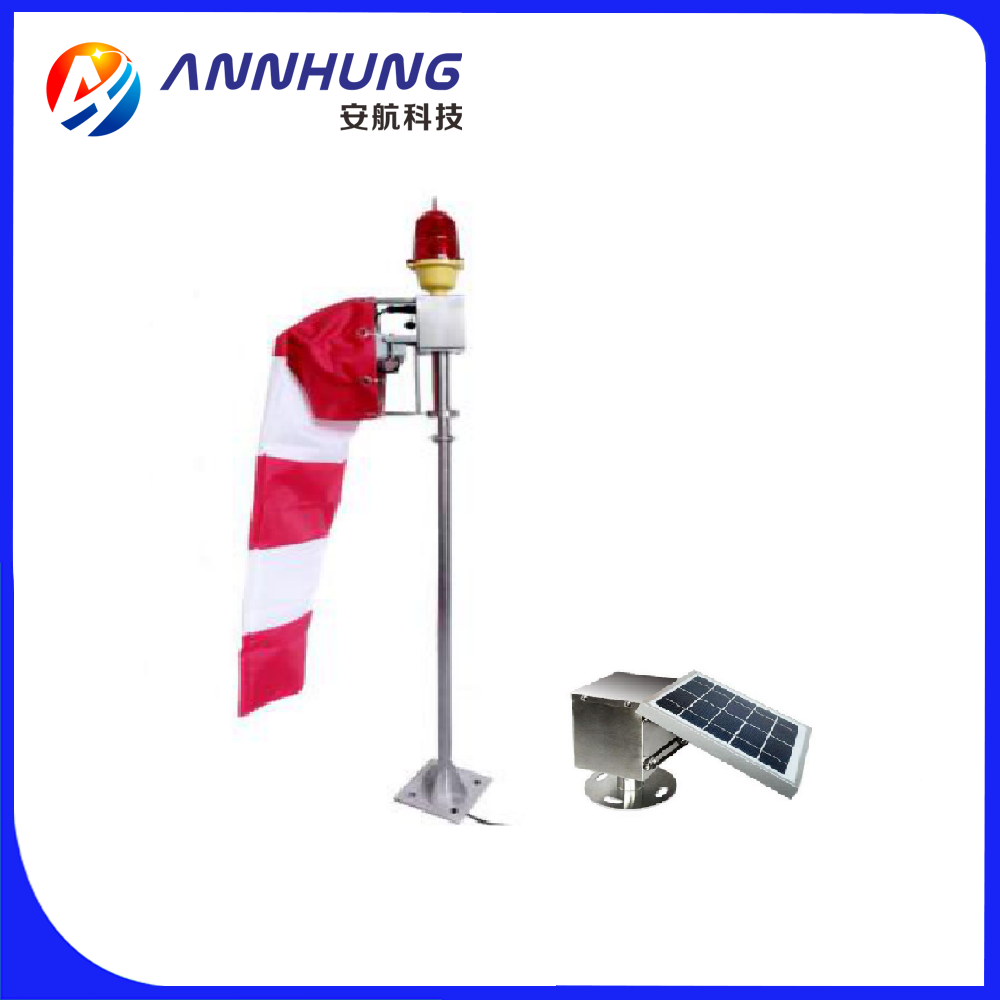

Internally Illuminated Heliport Solar Wind Cone
< >
  • Internally Illuminated Heliport Solar Wind Cone
Internally Illuminated Heliport Solar Wind Cone

Name:Internally Illuminated Heliport Solar Wind Cone

Model:AH-HP/W-1S

Product Introduction:

An heliport shall be equipped with at least one wind cone as wind direction indicator.

One obstruction light on top for aircraft warning. Solar panel, battery, ON/OFF switch is supplied with the windcone.

Contact Us

Details Parameters Download

Compliance

  •  ICAO Annex 14 Volume ǁ Heliports 5.1.1

  •  FAA  AC 150/5390-2B Heliport Design Guide



Features

  •  Power supply available in 12VDC

  •  Pole is made of corrosion resistance and wind resistance stainless steel 304(SS316 is optional)

  •  One obstruction light on top, one flood light for illumination

  •  Pole height is customized(1meter, 2meter, 2.5m, 3m, 4m, 5m...)

  •  Windsock color is: orange(Nylon), red/white(PVC)

  •  Windsock dimension:

       Pole height:<4m, Length: 1.2m, big diameter: 300mm, small diameter: 150mm

       Pole height: 4m-6m, Length: 2.4m, big diameter: 600mm, small diameter: 300mm

       Pole height: >6m, big diameter: 900mm, small diameter: 450mm

  •  Wireless remote control(3-4KM) & photocell for day/night operation

  •  Fragile coupling on base


SPECIFICATIONSAH-HP/W-1S Internally Illuminated
Heliport Solar Wind Cone
Electrical Characteristics
Operating Voltage12VDC
Solar&Battery Characteristics
Solar Module TypeMono crystalline Silicon, 50W
Battery typeLead acid battery, 12V/200AH
Autonomy (hours)120hours(Optional)
Environmental Factors
Ambient Temperature
(℃)
-55~70
Humidity10~900%
Wind Speed80m/s
WaterproofIP65
OptionalVHF pilot to ground
 remote control
