High-intensity Type A  L856 Aviation Obstruction Light
< >
  • High-intensity Type A  L856 Aviation Obstruction Light
  • High-intensity Type A  L856 Aviation Obstruction Light
  • High-intensity Type A  L856 Aviation Obstruction Light

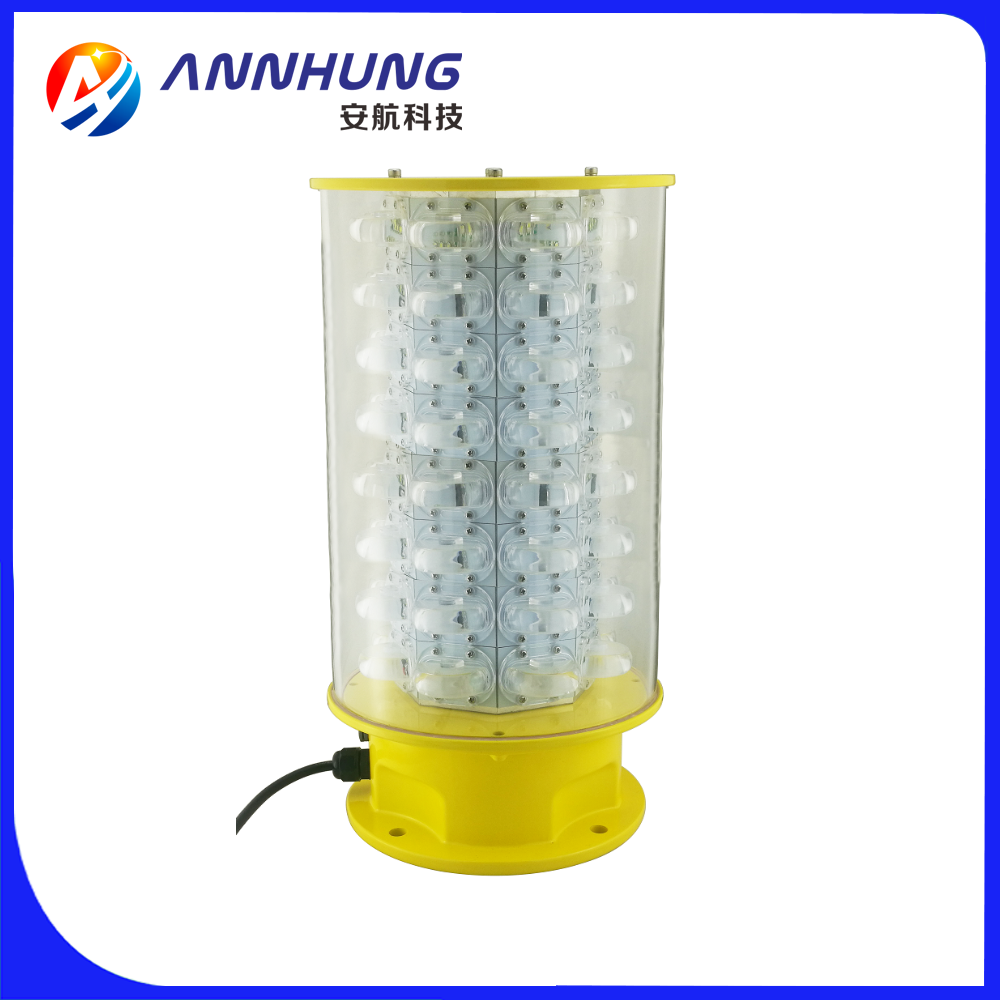

High-intensity Type A L856 Aviation Obstruction Light

Name:High-intensity Type A L856 Aviation Obstruction Light

Model:AH-HI/A-1

Product Introduction:

This High-intensity Type A Aviation Obstruction Light flashing white color 24 hours and designed for marking top of obstacle that exceed 150 meters in height.

Ultra high intensity CREE LED is used for the light source ensure light’s long life experience and good performance.

Self-designed reflection board ensure less LED could emitting brighter light.

Contact Us

Details Parameters Download

Compliance

  •  ICAO Annex 14 Volume 1, Sixth edition, 2013, table 6.3 High Intensity Type A Obstruction Light

  •  FAA L-856



Features


Electrical

  •  CREE ultra high intensity LED as light source saving power

  •  Power supply available in DC(48V) or AC(110V, 240V)

Physical

  •  Unique design and UV protected polycarbonate lens for converging light and saving LED power

  •  UV protection Powder coated bright yellow color base make better visibility

  •  Base material is powder coated die-casting aluminum which has strong corrosion resistance, Shock and Vibrations protection

  •  blob.pngSpecial valve installed beside the base to make sure the air could go through but water is avoid, so that the whole light temperature won’t be high to destroy the light

System design

  •  Built-in photocell for day/twilight/night operation

  •  Surge and lightning protection

Optional

  •  Alarm contact for remote monitoring

  •  Infrared LED for pilot using NVG

  •  GSM cellphone monitoring

  •  RS485 communication part for monitoring

  •  User adjustable flashing rate(40, 50, 60 flashes/minute)

  •  GPS synchronization



Application

  •  AH-HI/A-1 High-intensity light is used on the top of the High-rise Building, High Chimney, marking towers (Telecom, GSM, Microwave & TV), High Pole, Tower Crane, Wind Turbine, etc when the obstacle height is more than 150meter, and most time work with low intensity lights & medium intensity light installed on the lower place.


SPECIFICATIONSAH-HI/A-1 High-intensity
Type A L856 Aviation
Obstruction Light
Light Characteristics
Light SourceCREE high intensity LED
Available ColorsWhite
Intensity(cd)200,000cd±25%(Daytime)
20,000cd±25%(Twilight)
2,000cd±25%(Night)
Horizontal Output(degrees)360
Vertical Divergence
(degrees)
3-7
Flash Characteristics40-60 flashes per minute
Operation Mode24hours operation, 3 different modes
LED Life Experience(hours)>100,000
Electrical Characteristics
Operating VoltageDC(48VDC) or
AC(110, 240V)
Average Power(W)40W
Circuit ProtectionIntegrated
Physical Characteristics
Body MaterialPolycarbonate (Tempered
glass as optional)
SPECIFICATIONSAH-HI/A-1 High-intensity
Type A L856 Aviation
Obstruction Light
Base MaterialPowder coated
die-casting aluminum
Mounting θ190×θ12
Dimension(mm)236×236×430
Weight(kg)9
Product Life Expectancy5 years Plus
Environmental Factors
Humidity0%-100%
Wind Speed80m/s
WaterproofIP67
Compliance
ICAOAnnex 14 Volume
1,'Aerodrome Design and
Operations’ Sixth edition 2016,
table 6.3 High-intensity Type A
White Obstacle Light
FAAL-856
Options Available
GPS Sync FlashingNVG(Night Vision Goggles)
compatible LED
Dry Contact alarm
(NO COM NC)
GSM Monitoring
User adjustable flashing
rate (40, 50, 60)
/
