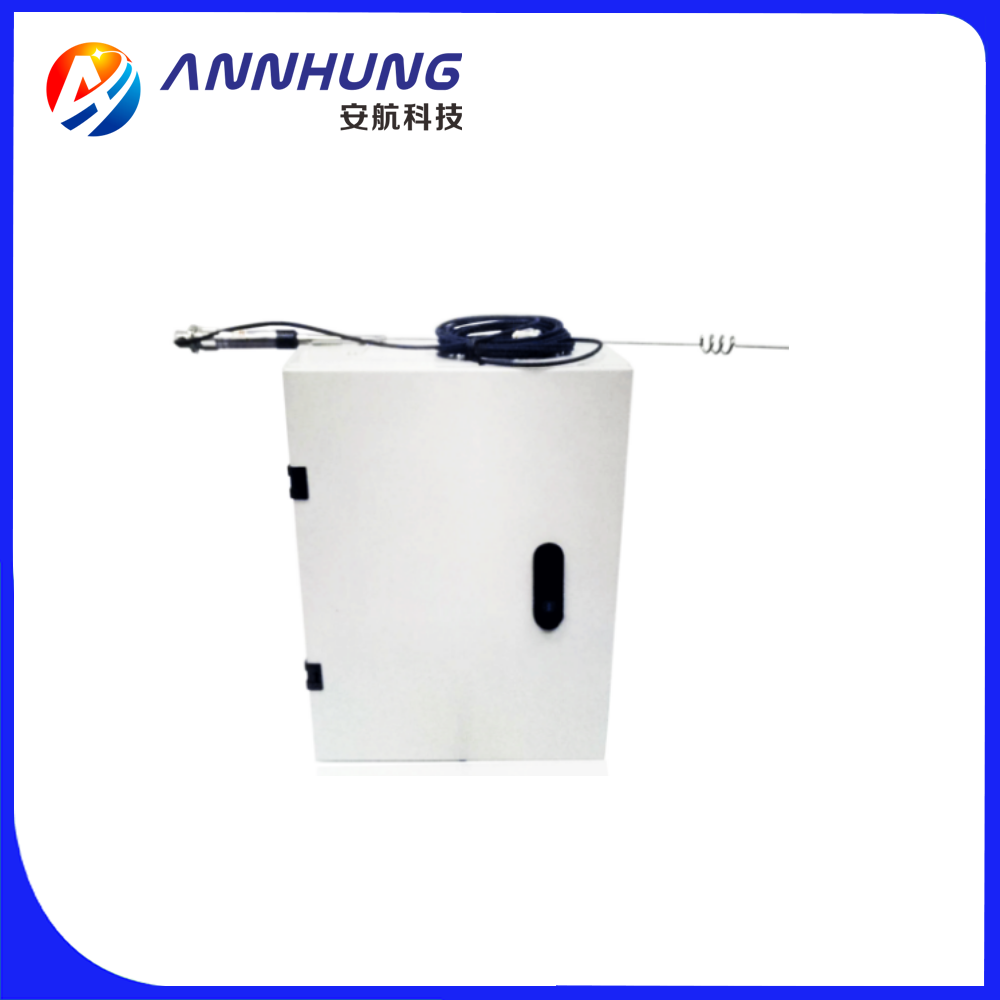

Heliport Light Radio Controller
< >
  • Heliport Light Radio Controller
  • Heliport Light Radio Controller
Heliport Light Radio Controller

Name:Heliport Light Radio Controller

Model:AH-HP-G-VHF

Product Introduction:

AH-HP/G-VHF Heliport Light Radio Controller permits pilots to turn on airfield lights utilizing their

existing the aircraft VHF 118-137 MHZ band radio when flying to an airport or heliport.

Contact Us

Details Parameters Download

Compliance

  •  ICAO and FAA regulations and CAP437 (offshore helipads)



Features

  •  Low maintenance costs

  •  Protected from input transients, output overload, over-voltage, and over temperature conditions.

  •  System may be set to respond to 3, 5 or 7 clicks (default setting: 5 clicks) to set the light intensity of the dimming light(3 click-25%, 5 click-50%, 7click-100%), it will control ANNHUNG dimming heliport lighting only.

  •  Adjustable activation duration (user programmable 1, 5, 15,30, 45 and 60 minutes)(default setting: 15 minutes).

  •  Frequency of signal transmission: 137-174/400-470MHZ Frequency of signal reception: 118-136MHZ

  •  Solar system(solar panel, battery) is optional for AH-HP/G-VHF

  •  Photocell control is optional

SPECIFICATIONSAH-HP/G-VHF
Heliport Light Radio Controller
Electrical Characteristics
Operating Voltage12VDC, 48VDC,
110VAC, 240VAC, etc
Control CapacityCustomized
Physical Characteristics
Body MaterialPainted Metal Box
(SS316, SS304 is optional)
Overall size(mm)400×300×200
 (Standard, others optional)
Installation size(mm)360×260×θ10
(Standard, others optional)
Weight(kg)5 (Standard, others optional)
Product Life ExpectancyAverage 5 years
Environmental Factors
Ambient Temperature(℃)-55~70
Humidity0~95%
Wind Speed80m/s
WaterproofIP65
Options Available
PhotocellSolar system
