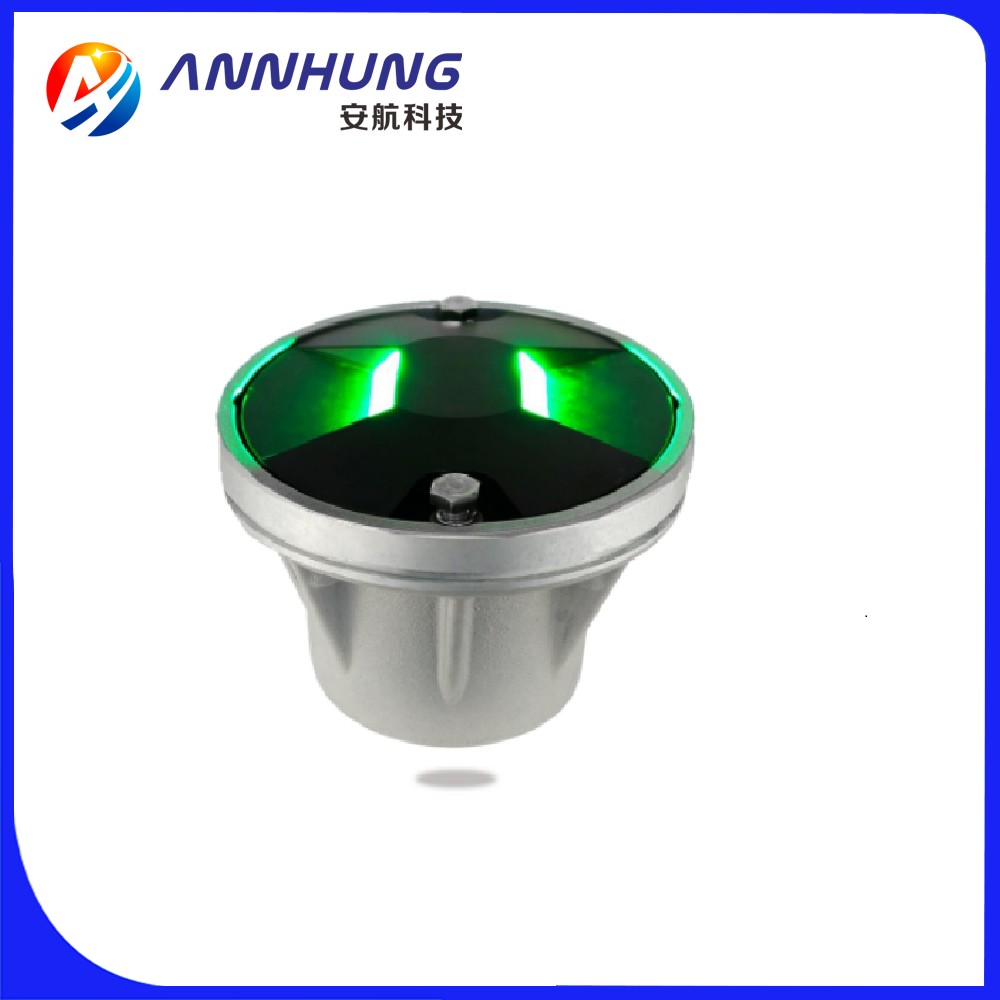

Heliport Inset bidirectional Light
< >
  • Heliport Inset bidirectional Light
  • Heliport Inset bidirectional Light
Heliport Inset bidirectional Light

Name:Heliport Inset bidirectional Light

Model:AH-HP-C

Product Introduction:

Heliport Inset bidirectional light is always be installed at locations where the lights are frequently knocked down by aircraft or maintenance vehicles.

It could be used as Center Line Light, Runway Threshold/End Light, Runway Edge Lighting etc. The emitting color is green/green or yellow/red or yellow/green or red/green.

Contact Us

Details Parameters Download

Compliance

  •  ICAO Annex 14 Volume ǁ Heliports 5.3.

  •  FAA  AC 150/5390-2B Heliport Design Guide



Features


Electrical

  •  LED as light source saving power consumption and maintenance, 95% less power than equivalent incandescent light

  •  Power supply available in AC(110-240VAC), DC48V

Physical

  •  Pressure resistance lens allowed the vehicles go through on light

  •  Die-casting aluminum covered by black hard anodizing layer have good corrosion protection and load bearing

  •  IP68 waterproof ensure light work fine underground

  •  Emitting light in two opposite sides

Optional

  •  Infrared LED for pilot using NVG(Night Vision Goggles)

  •  Controller for power supplying and turn ON/OFF light

  •  VHF pilot to ground remote control

  •  Marine treated


Application

  •  Helipad/Heliport Runway

  •  Heliport Taxiway


SPECIFICATIONSAH-HP/C
Heliport Inset
Bidirectional Light
Light Characteristics
Light SourceCREE Ultra
high intensity LED
Available ColorsGreen/Green, White/Yellow,
Green/Red or others
Intensity(cd)≥100cd
Flash CharacteristicsSteady burning
Operation Mode24hours operation
LED Life Experience(hours)>100,000
Electrical Characteristics
Operating Voltage110-240VAC, 48VDC,
24VDC or others
Power(W)7
Physical Characteristics
Body MaterialAnodized Die-casting
aluminum
Base MaterialPainted aluminum
Overall size(mm)194×194×138
SPECIFICATIONSAH-HP/C
Heliport Inset
Bidirectional Light
Installation size(mm)199×199×146
Weight(kg)4.5
Product Life ExpectancyAverage 5 years
Environmental Factors
Ambient Temperature(℃)-55~70
Humidity0~100%
Wind Speed80m/s
WaterproofIP68
Compliance
ICAOICAO Annex 14 Volume ǁ
Heliports 5.3
Options Available
Marine TreatedInfrared LED compatible for
NVG (Night Vision Goggles)
VHF pilot to ground
remote control
